PCC-1416 Electronic CAM Controller with 4.3-inch Touch HMI, 16 Outputs
Digital electronic CAM controller with a 4.3-inch touch HMI, 16 open-collector CAM outputs and single-axis absolute encoder input supporting Binary and Gray Code.
- Digital CAM outputs replace mechanical cams, with settings adjustable on the touchscreen
- Single-axis encoder input supporting Binary and Gray Code absolute encoders, up to 12-bit (4096 counts)
- 8 banks, up to 32 area settings per bank, and 16 open-collector CAM outputs
- Start Input pin to hold outputs off during testing, also usable as an emergency stop
- Teaching mode uses the live encoder value to update angle or position settings
- Password protection and parameter copy function for bank and output settings
6.495,08 kr. pr. stk.
| 1–9 stk. | 6.495,08 kr. | |
|---|---|---|
| 10–30 stk. | 6.300,75 kr. | −3 % |
| 31+ stk. | 6.173,69 kr. | −5 % |
Produktinformation "PCC-1416 Electronic CAM Controller with 4.3-inch Touch HMI, 16 Outputs"
PCC-1416 CR is a digital electronic CAM controller that replaces mechanical cam systems with digital signal processing. Output timing is set through the touchscreen rather than by machining or swapping metal cam blades, so operating parameters can be changed quickly and repeatedly.

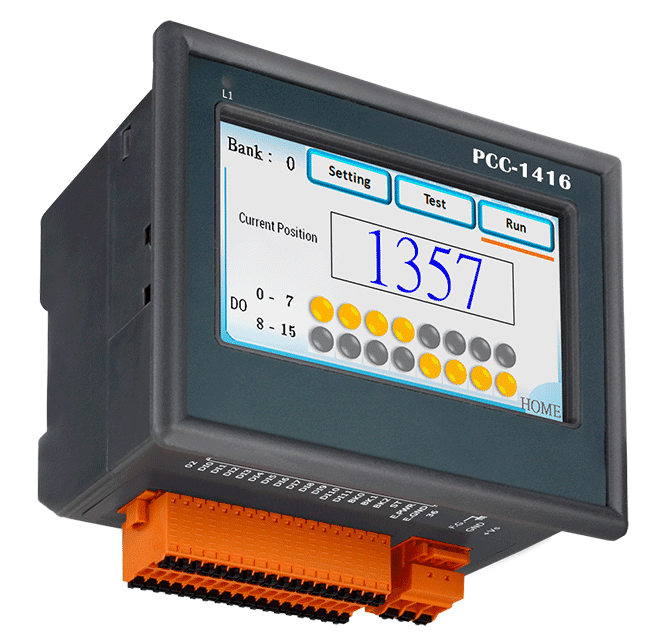

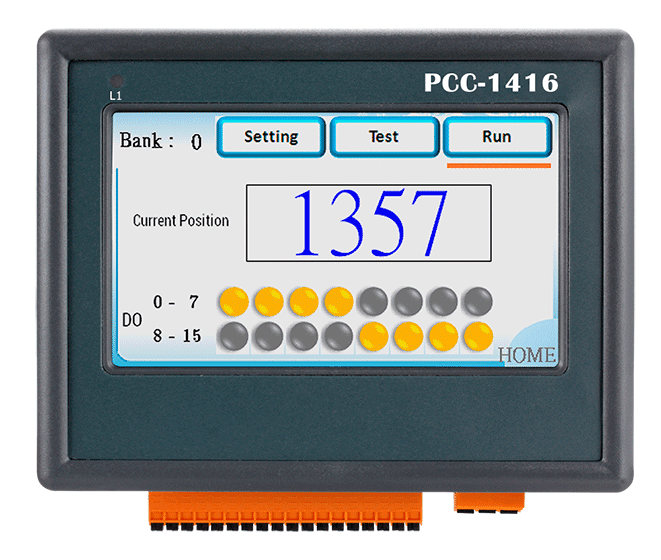

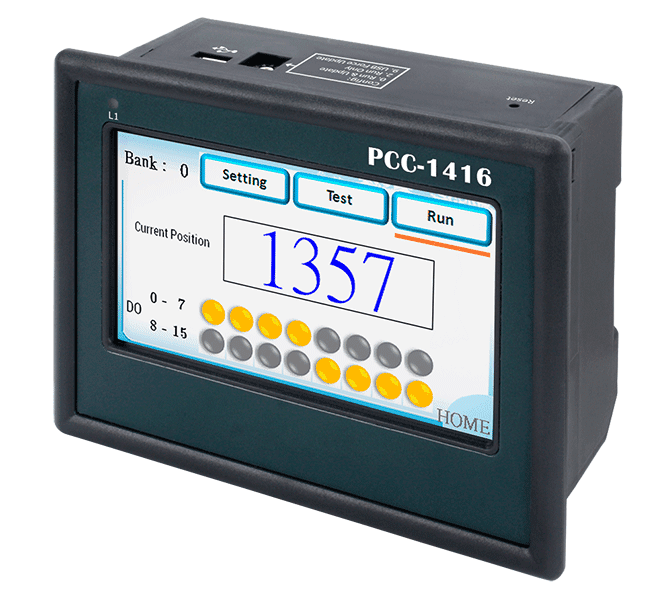

The unit combines a 4.3-inch high-colour touch display with a single-axis encoder input that accepts Binary or Gray Code absolute encoders, at up to 12-bit resolution. It provides 8 banks, each with up to 32 area settings, driving 16 open-collector CAM outputs. A Start Input must be energised before the CAM channels can switch, which helps prevent unintended outputs during machine set-up and testing.
The ordering code carries the RoHS suffix, and the listed certifications are CE, UKCA, RoHS and WEEE. Front-panel protection is rated IP65, with DIN-rail or wall mounting options for installation in machine control cabinets and panels.
Applications
- Automatic lathes
- Turret test machines
- Textile machines
- Printing presses
- Testing equipment
- Assembly lines
- Packaging systems
| Product type: | Electronic CAM controller |
|---|---|
| Interface: | Touch HMI |
| Digital inputs: | 4 |
| Digital outputs: | 16 |
| Ports: | 1x USB 3.1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | DIN-rail / wall |
Specifikationer
| Display | |
|---|---|
| Type | TFT LCD (65535 colors), defective pixels <= 3 |
| Size | 4.3" |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 480 x 272 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 |
| Encoder Input | |
| No. of Axes | 1 |
| Mode | CW/CCW (Programmable) |
| Coding Format | Binary/Gray Code |
| Resolution | 12-bit (Max.) |
| Pulses Per Revolution | 360/720/2048/4096 |
| Frequency | 1200 rpm @ 360 PPR 600 rpm @ 720 PPR 210 rpm @ 2048 PPR 105 rpm @ 4096 PPR |
| Digital Input | |

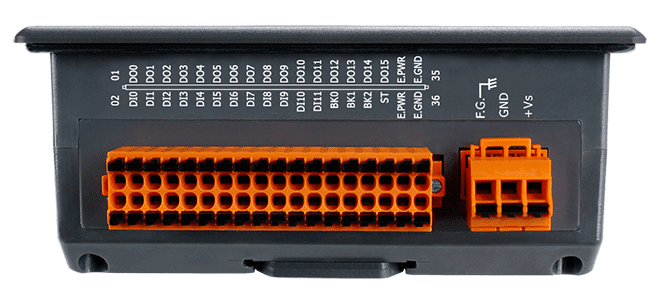

| Channels | 1x Start Input 3x Bank Input |
| Type | Wet |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| ON Voltage Level | + 3 VDC (Max.) |
| OFF Voltage Level | + 10 ~ 24 VDC |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | + 30VDC (Max.) |
| Load Current | 100 mA (per channel) |
| Response Speed | 150 μs (Max.) |
| HMI | |
| Buzzer | Yes |

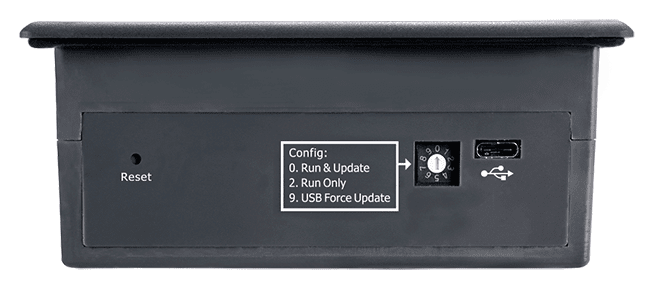

| Rotary Switch | 0 ~ 9 |
| Reset Button | Yes |
| USB | |
| Ports | 1x USB 3.1 (Firmware updates only) |
| Power | |
| Input Range | + 12 ~ 48 VDC |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 131 x 114 x 54 |
| Panel Cut-out (mm) | 120±1, 92±1 |

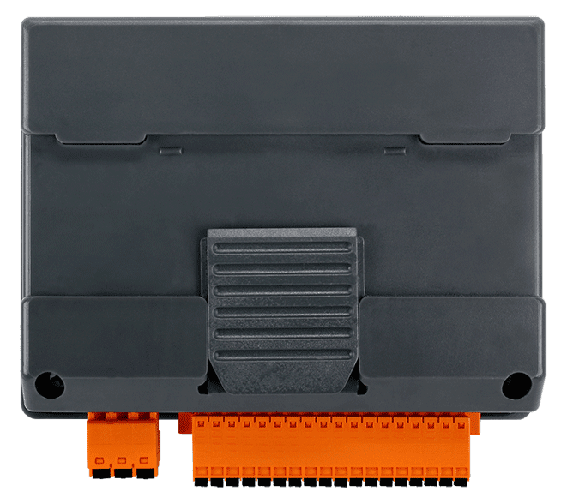

| Installation | DIN-Rail mounting / Wall mounting |
| Ingress Protection Rating | Front panel: IP65 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
