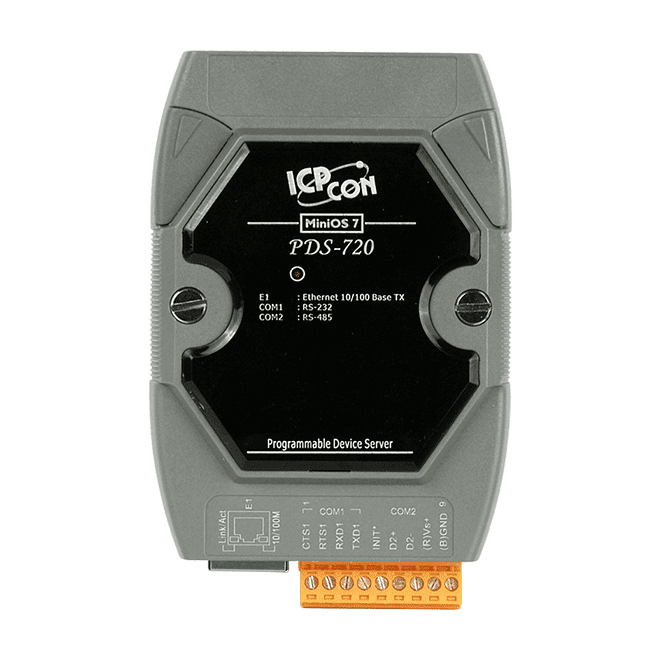

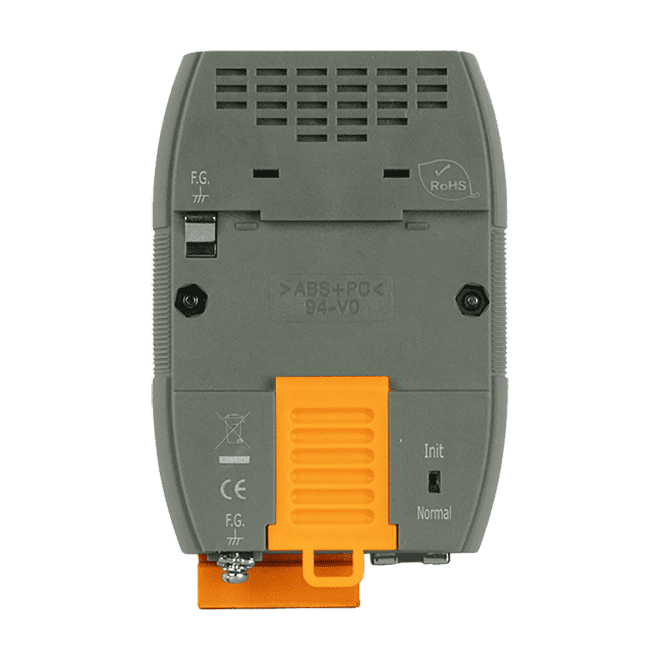

PDS-720 Serial-to-Ethernet Device Server, 1x RS-232 + 1x RS-485
Programmable device server with one RS-232 and one RS-485 port for bringing serial devices onto 10/100 Ethernet, with a built-in Modbus TCP to RTU/ASCII gateway. Ships with CA-0910 cable.
- Bridges one RS-232 and one RS-485 serial device to 10/100 Base-TX Ethernet
- Virtual COM driver extends PC COM ports across the network, supporting 32/64-bit Windows 7 SP1/10/2012/2016
- Modbus TCP to RTU/ASCII gateway function for SCADA and HMI integration
- Programmable device server with Xserver structure and built-in MiniOS7
- Watchdog timer and +/-4 kV ESD protection on the serial port
- Self-tuner ASIC controller on the RS-485 port
1.248,19 kr. pr. stk.
| 1–9 stk. | 1.248,19 kr. | |
|---|---|---|
| 10–30 stk. | 1.210,82 kr. | −3 % |
| 31+ stk. | 1.188,40 kr. | −5 % |
Produktinformation "PDS-720 Serial-to-Ethernet Device Server, 1x RS-232 + 1x RS-485"
The PDS-720 CR links a standard RS-232 device and an RS-485 device to an Ethernet network. Its built-in COM ports can be presented as standard COM ports on a Windows PC using the VxComm driver and utility, so existing serial software can continue to work across the network without modification.
Beyond simple serial bridging, the unit runs the built-in MiniOS7 real-time operating system and can be programmed through the Xserver structure to build custom Ethernet applications. It also operates as a Modbus TCP to RTU/ASCII gateway, suited to SCADA and HMI systems that communicate over Modbus TCP. The module is supplied with the CA-0910 cable.
The housing is plastic and measures 72 mm x 35 mm x 112 mm, with DIN-rail or wall mounting. Power is taken from a +10 ~ 30 VDC terminal block, and the unit is rated for operation from -25 ~ +75 °C with 5 ~ 90% RH non-condensing humidity.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 2 serial, 1 Ethernet |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail or wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 |
| Stop Bit | 1, 2: for COM1 ~ COM2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.0 W |
| Powered from Terminal Block | +10 ~ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 112 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
