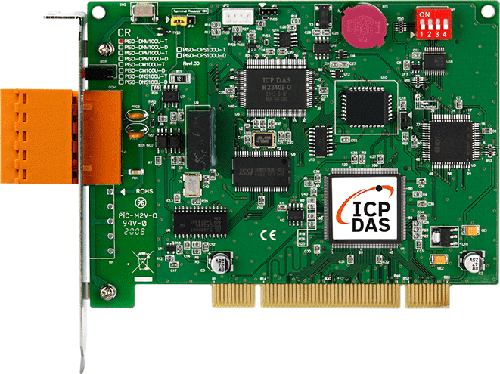

PISO-DNM100U-T Universal PCI DeviceNet Master Board, 1 Port
Single-port intelligent DeviceNet master on a universal PCI board for Windows PCs, supporting 125, 250 and 500 kbps and up to 64 nodes per port.
- Programmable master MAC ID and transfer rate of 125, 250 or 500 kbps
- Up to 64 nodes per port with Poll, Bit-Strobe and Change Of State/Cyclic I/O operation modes
- Auto-scan of slave devices, on-line adding and removing of devices, and boot-up auto communication
- Auto-reconnect when a connection is broken
- Supports UCMM and Group 2 Only Server functions, with a maximum I/O fragment number of 64
- Universal PCI interface compatible with both 5 V and 3.3 V PCI bus
3.311,07 kr. pr. stk.
| 1–9 stk. | 3.311,07 kr. | |
|---|---|---|
| 10–30 stk. | 3.213,91 kr. | −3 % |
| 31+ stk. | 3.146,64 kr. | −5 % |
Produktinformation "PISO-DNM100U-T Universal PCI DeviceNet Master Board, 1 Port"
The PISO-DNM100U-T (ordering code PISO-DNM100U-T CR) turns a Windows-based PC into a DeviceNet master on the network. It uses its own independent CAN bus port, with a predefined master-slave connection set, and supports Group 2 Only Server and UCMM functions for communication with slave devices.
The board is built around an NXP SJA1000T CAN controller and an 82C250 transceiver, which provide bus arbitration, error detection with automatic correction and retransmission. Its universal PCI interface accepts both 5 V and 3.3 V PCI slots, and the board number is set by DIP switch.
- Suited to industrial automation, building automation, vehicle, marine and embedded control networks
- Driver support for Windows XP, 7, 8 and 10 (32-bit and 64-bit), with SDK support for VB 6.0, VC++ 6.0, BCB 6.0 and Visual Studio .NET
Applications
- LCD panel production and inspection
- Communication with PowerFlex400 drives
- Valve control with SMC, IFC-125 and MKS FRCA valves
- SICK distance sensor integration
- Industrial automation, building automation, vehicle, marine and embedded control networks
| Product type: | PCI board |
|---|---|
| Interface: | PCI |
| Protocol: | DeviceNet |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | 0 ~ +60 ℃ |
Specifikationer
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET |
| LED Indicators | |
| Status | Green LED, Red LED |
| PC Bus | |
| Type | Universal PCI supports both 5 V and 3.3 V PCI bus |
| Board No. | By DIP switch |
| DeviceNet | |
| Controller | NXP SJA1000T with 16 MHz clock Microprocessor inside with 80186 80MHz |
| Ports | 1 |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Protocol | DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
| Consumption | 300 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 138 x 22 x 105 (W x L x H) |
| Environment | |
| Operating Temperature | 0 ~ +60 ℃ |
| Storage Temperature | -20 ~ +70 ℃ |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
