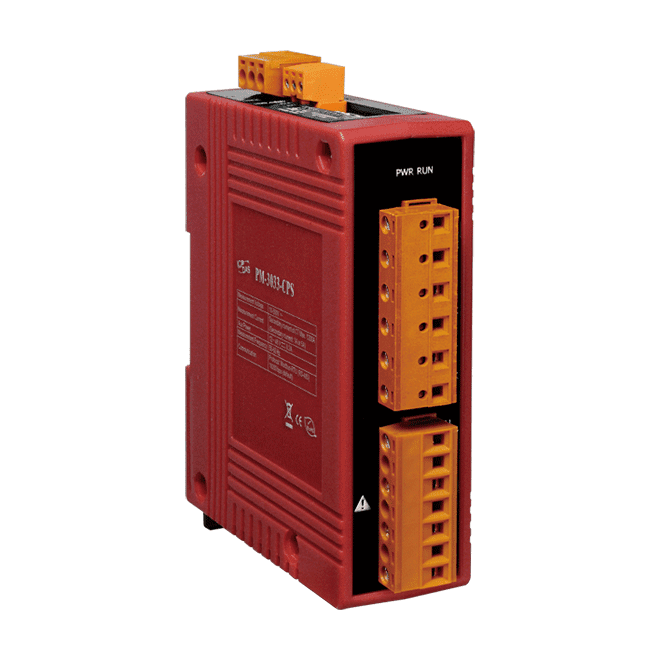

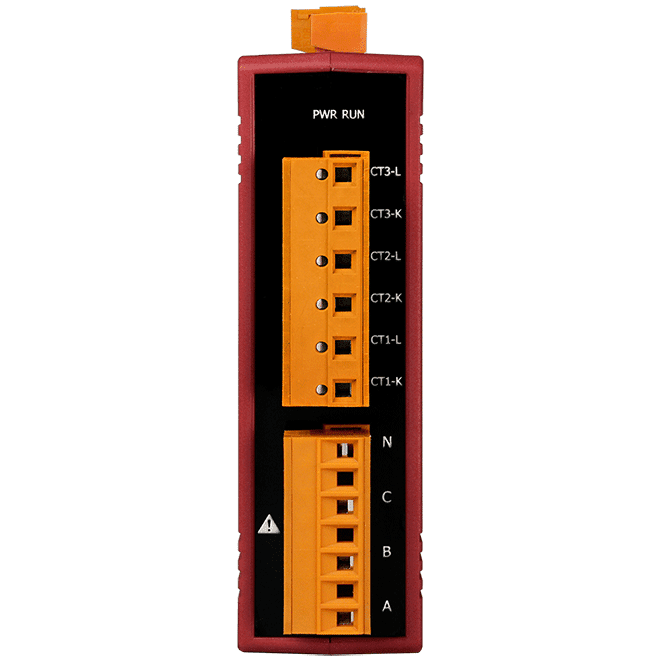

PM-3033-CPS CANopen 3-Phase Power Meter, 1A/5A CT Input
CANopen 3-phase power meter with direct 1A/5A CT input for true RMS power, energy and THD measurement on 10 ~ 500 VAC systems. Ordering code PM-3033-CPS CR.
- Direct input from secondary-side 1A/5A CTs, no dedicated CTs needed
- True RMS measurement of voltage, current, active, reactive and apparent power and energy
- Energy analysis for 3P4W, 3P3W, 1P3W and 1P2W wiring, with bi-directional energy
- W accuracy better than 0.5% (PF=1; input current >0.5 A)
- Voltage input 10 ~ 500 V, frequency 50/60 Hz

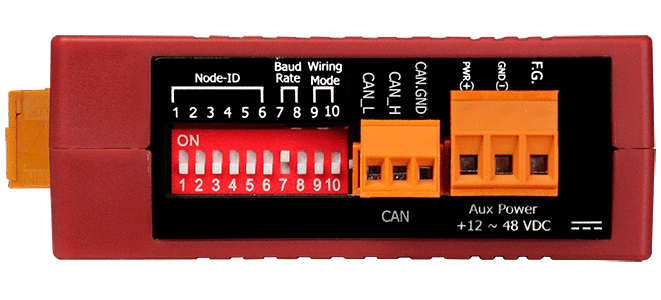

- CANopen interface with baud rates 125 k (default), 250 k, 500 k and 1 M, DIP switch selectable
2.085,30 kr. pr. stk.
| 1–9 stk. | 2.085,30 kr. | |
|---|---|---|
| 10–30 stk. | 2.025,51 kr. | −3 % |
| 31+ stk. | 1.980,66 kr. | −5 % |
Produktinformation "PM-3033-CPS CANopen 3-Phase Power Meter, 1A/5A CT Input"
PM-3033-CPS CR is a CANopen three-phase power meter for engineers who need real-time energy readings from low-voltage primary circuits or medium/high-voltage secondary circuits. It accepts secondary-side 1A/5A current transformers directly, so dedicated metering CTs are not required, which keeps installation costs down.
The meter reports true RMS voltage and current, active, reactive and apparent power and energy, power factor, frequency and total harmonic distortion. Energy analysis covers 3P4W, 3P3W, 1P3W and 1P2W wiring, and the data update rate is one second. The 10 ~ 500 VAC input range and 50/60 Hz frequency support is suited to a wide range of installations.
The CANopen interface is set up with DIP switches, with baud rates from 125 k (default) to 1 M. The DIN-rail mounted plastic housing, 3000 VDC isolation and +12 ~ 48 VDC power input make it straightforward to fit into generator monitoring and switchgear distribution panels.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | CANopen |
| Protocol: | CANopen |
| Isolation: | 3000 VDC |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 3-phase: 1 1-phase: 3 @ 1P2W-1CT 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current | 0.05 A ~ 5 A |
| Input Frequency | 50/60 Hz |
| W Accuracy | Better than 0.5% (PF=1; Input Current >0.5A) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| CANopen | |
| Baud Rate | 125 k (default), 250 k, 500 k, 1 M; DIP Switch Selectable |
| Isolation | 3000 VDC |
| Protocol | CANopen |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 2W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
