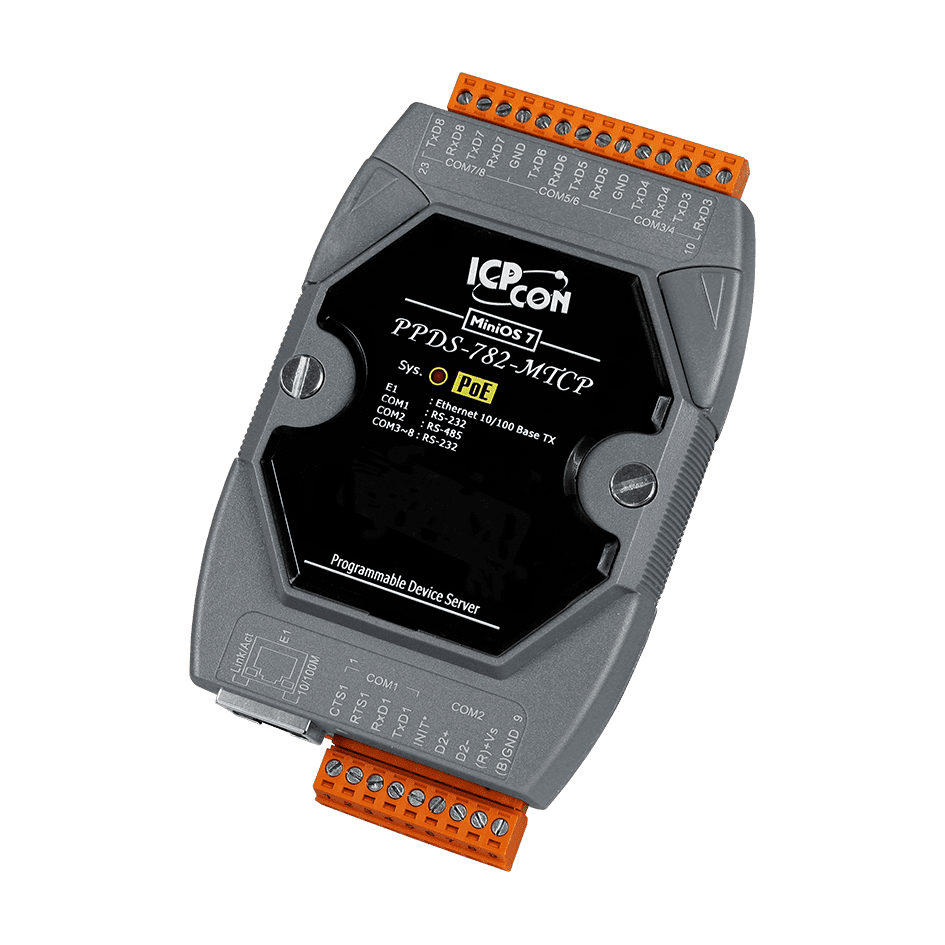

PPDS-782-MTCP PoE Device Server, 7x RS-232 / 1x RS-485, Modbus TCP Gateway
Programmable serial-to-Ethernet device server with PoE, 7 RS-232 ports and 1 RS-485 port, plus a Modbus TCP to RTU/ASCII gateway function. Supplied with CA-0910 cable.
- Seven RS-232 ports and one RS-485 port bridged to a 10/100 Base-TX Ethernet network
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communications
- VxComm utility creates virtual COM ports on 32/64-bit Windows 7 SP1, 10, 2012 and 2016
- IEEE 802.3af Class 1 PoE, or 12 to 48 VDC terminal block power input
- Programmable device server with built-in MiniOS7, booting in one second
- Watchdog timer and +/-4 kV ESD protection on the serial ports
2.929,89 kr. pr. stk.
| 1–9 stk. | 2.929,89 kr. | |
|---|---|---|
| 10–30 stk. | 2.840,20 kr. | −3 % |
| 31+ stk. | 2.780,40 kr. | −5 % |
Produktinformation "PPDS-782-MTCP PoE Device Server, 7x RS-232 / 1x RS-485, Modbus TCP Gateway"
The PPDS-782-MTCP bridges seven RS-232 devices and one RS-485 device onto an Ethernet network, so legacy serial equipment can be reached from networked hosts without rewiring the control system. Its built-in Modbus TCP to RTU/ASCII gateway lets SCADA and HMI platforms that speak Modbus TCP poll serial slaves directly.
Each serial port can be presented as a virtual COM port on a Windows PC through the VxComm utility, which keeps existing COM-based software working. A programmable device server core, running the MiniOS7 operating system, allows custom Ethernet applications to be built on the unit. The device is powered either by IEEE 802.3af Class 1 Power over Ethernet from a PoE switch or from a +12 ~ 48 VDC terminal block, and it is delivered with a CA-0910 cable.
The compact plastic housing mounts on DIN-rail or wall, with a removable terminal block for wiring in industrial installations.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 7x RS-232, 1x RS-485 |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 6 x 3-wire RS-232 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM8 |
| Stop Bit | 1, 2: for COM1 ~ COM8 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
