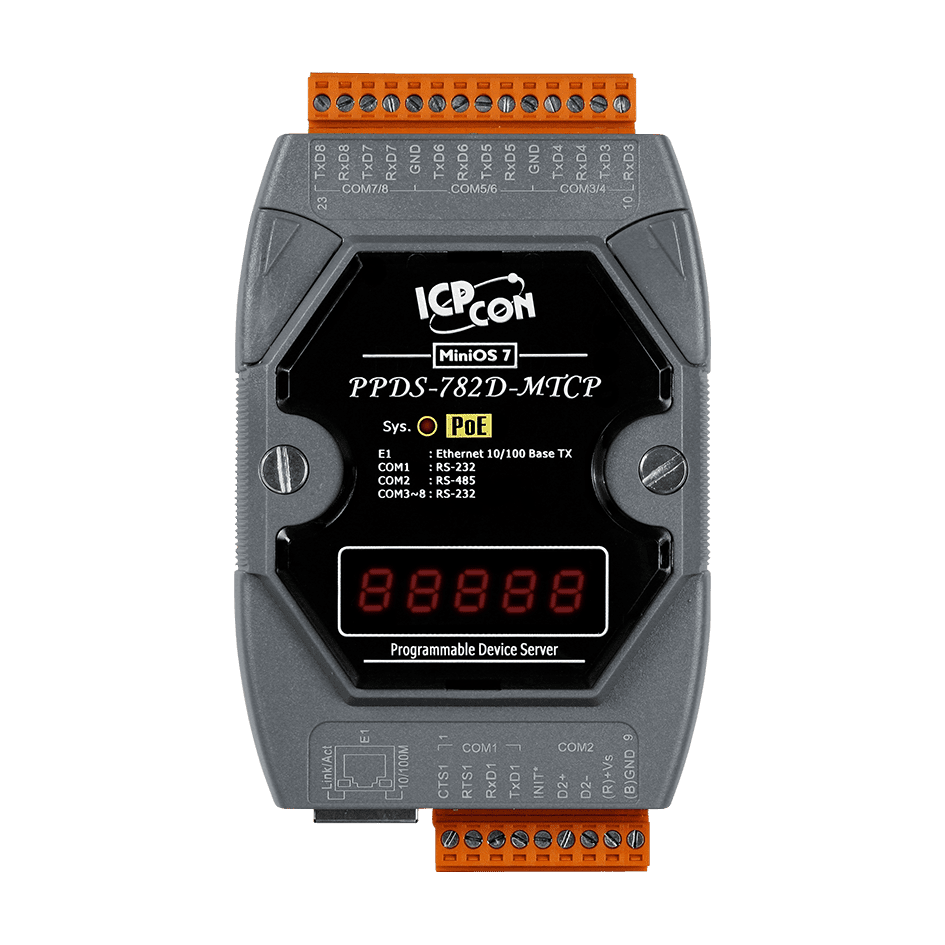

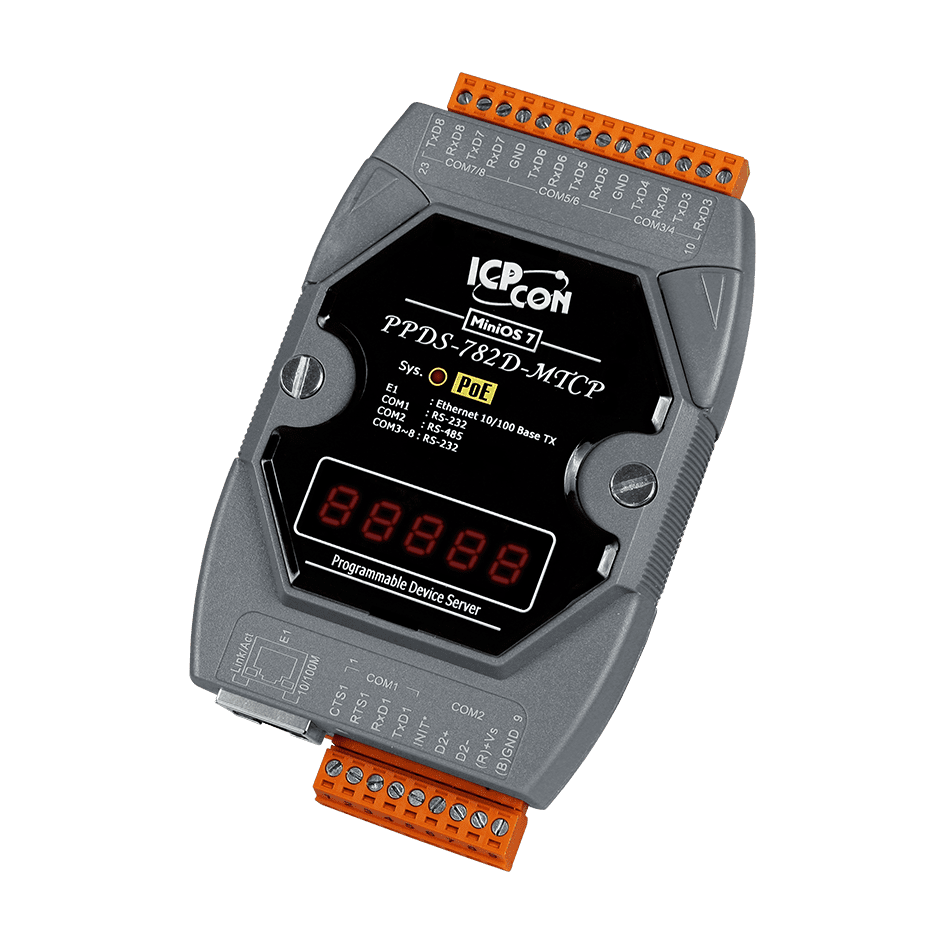

PPDS-782D-MTCP PoE Device Server, 7x RS-232 + 1x RS-485 to Modbus TCP Gateway
Programmable serial-to-Ethernet device server with PoE, linking 7 RS-232 ports and 1 RS-485 port to Ethernet, with a Modbus TCP to RTU/ASCII gateway function. Includes CA-0910 cable.
- Seven RS-232 ports and one RS-485 port for serial-to-Ethernet connectivity
- VxComm driver maps built-in COM ports to standard COM ports on Windows PCs (32/64-bit Windows 7 SP1/10/2012/2016)
- Modbus TCP to RTU/ASCII gateway function for SCADA and HMI integration
- Programmable with the Xserver structure on the built-in MiniOS7
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power input
- Self-tuner ASIC controller on the RS-485 port and +/-4 kV ESD protection circuit on the serial ports
3.019,58 kr. pr. stk.
| 1–9 stk. | 3.019,58 kr. | |
|---|---|---|
| 10–30 stk. | 2.929,89 kr. | −3 % |
| 31+ stk. | 2.870,09 kr. | −5 % |
Produktinformation "PPDS-782D-MTCP PoE Device Server, 7x RS-232 + 1x RS-485 to Modbus TCP Gateway"
The PPDS-782D-MTCP brings legacy serial equipment onto an Ethernet network. It provides seven RS-232 ports and one RS-485 port, so existing serial devices can be connected without redesigning their communication side. The VxComm driver and utility can map the built-in COM ports to standard COM ports on a Windows PC, which suits software already written for local serial ports.
The unit runs the built-in MiniOS7 and supports the Xserver programming structure, so custom Ethernet applications can be built on the device. Its Modbus TCP to RTU/ASCII gateway function allows SCADA and HMI systems that use Modbus TCP to communicate with Modbus RTU or ASCII devices on the serial side.
Power can be supplied by IEEE 802.3af Class 1 PoE over a standard Category 5 cable, or from a +12 ~ 48 VDC terminal block. The removable terminal block, DIN-rail or wall mounting and LED display support installation in industrial cabinets. The package includes the CA-0910 cable.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-232 / RS-485 / Ethernet |
| Protocol: | Modbus TCP |
| Ports: | 8 |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / Wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE 5 x digit 7 Segment |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 6 x 3-wire RS-232 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM8 |
| Stop Bit | 1, 2: for COM1 ~ COM8 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.9 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
