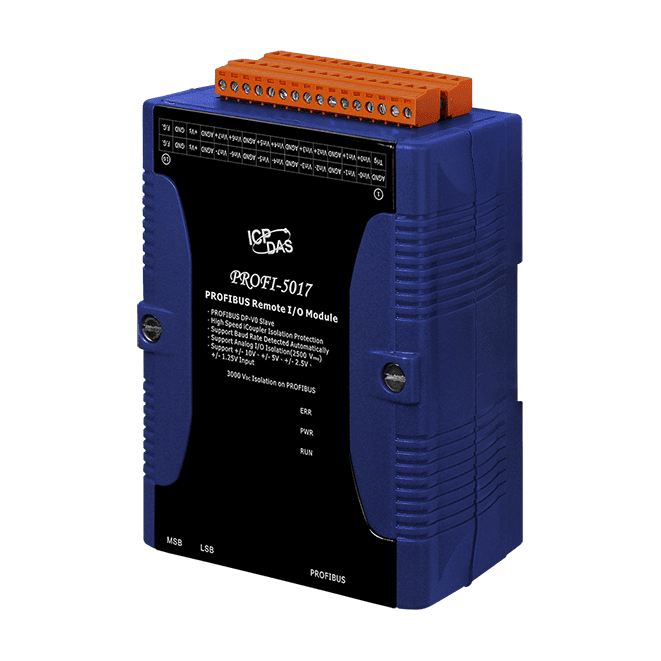

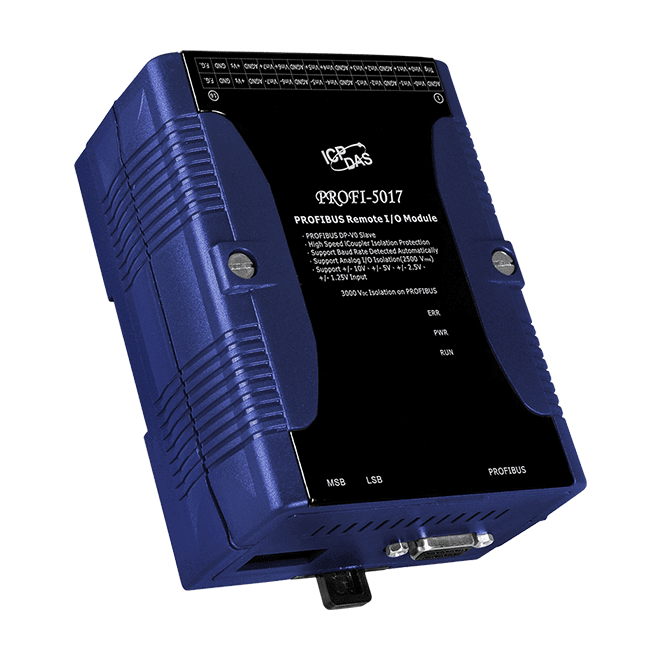

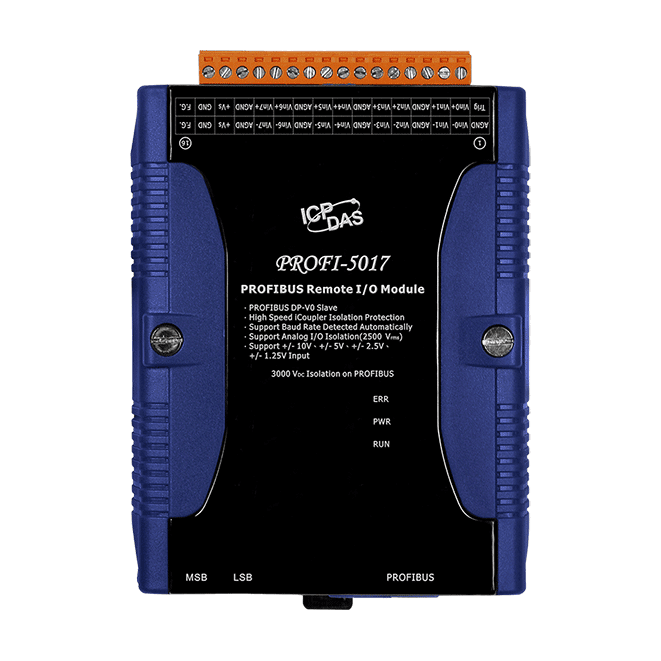

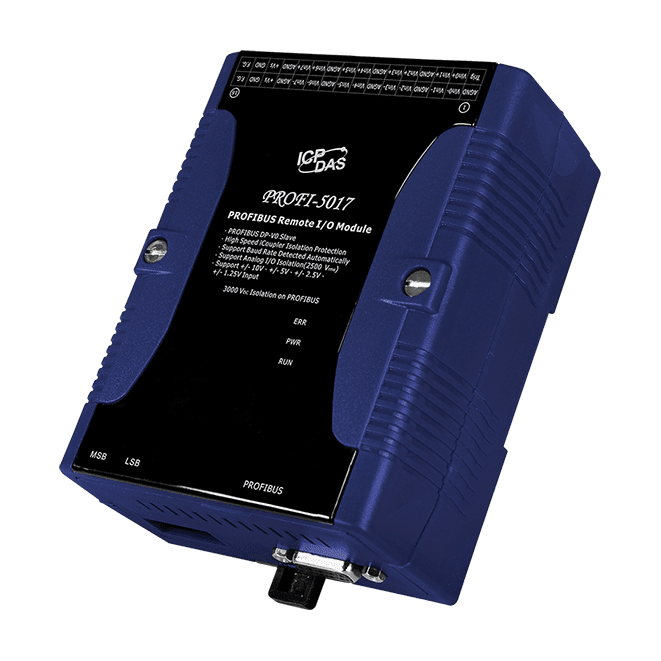

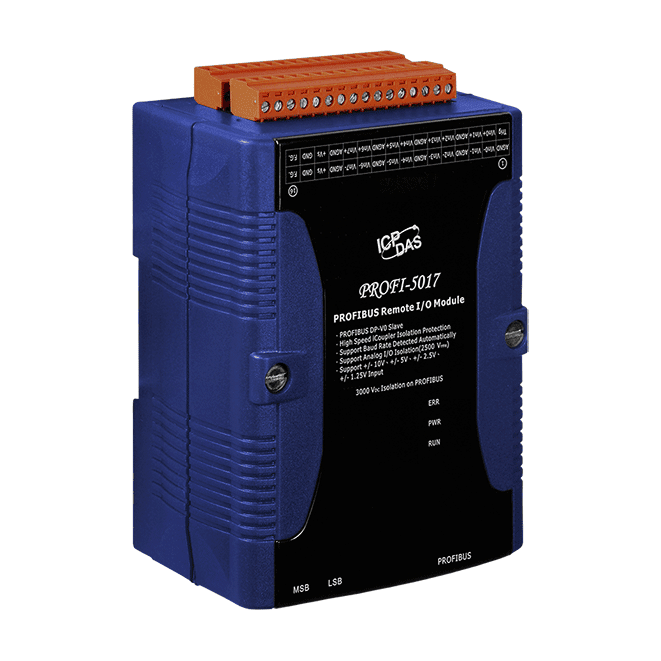

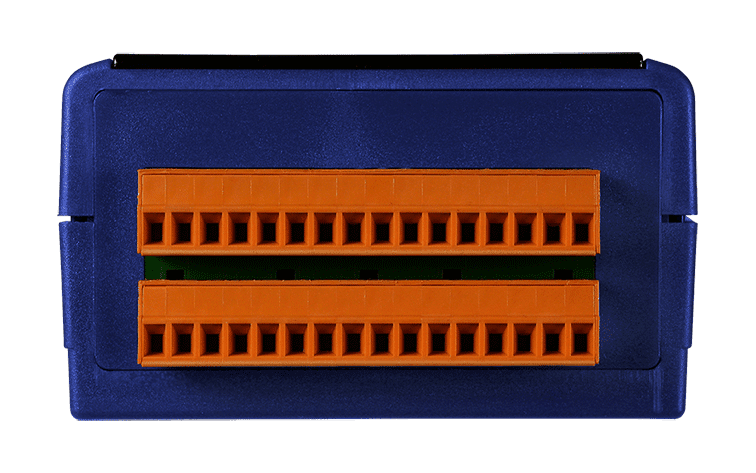

PROFI-5017 PROFIBUS DP Remote I/O Module, 8-ch Isolated Analog Voltage Input
PROFIBUS DP-V0 slave module with 8 isolated differential analog voltage inputs, ±10 V to ±1.25 V ranges and 2500 Vrms field-to-logic isolation for DIN-rail installation.
- PROFIBUS DP-V0 slave with 8 differential analog voltage inputs
- Input ranges of ±10 V, ±5 V, ±2.5 V and ±1.25 V
- 2500 Vrms field-to-logic isolation per the bus-to-logic specification, 3000 VDC DC-to-DC
- Station address 0 to 126 set by rotary switches or SSA telegram
- Automatic transmission rate detection, 9.6 k to 12 M baud
- Configured using the GSD file in any PROFIBUS configurator
3.079,37 kr. pr. stk.
| 1–9 stk. | 3.079,37 kr. | |
|---|---|---|
| 10–30 stk. | 2.989,68 kr. | −3 % |
| 31+ stk. | 2.929,89 kr. | −5 % |
Produktinformation "PROFI-5017 PROFIBUS DP Remote I/O Module, 8-ch Isolated Analog Voltage Input"
The PROFI-5017 is a PROFIBUS DP-V0 slave remote I/O module that brings eight differential analog voltage inputs onto a PROFIBUS network. Input ranges of ±10 V, ±5 V, ±2.5 V and ±1.25 V with an accuracy of ±0.1 of FSR suit a range of signal levels, and each channel is isolated from the logic side at 2500 Vrms.
Integration is straightforward: the module is configured through its GSD file in any PROFIBUS configurator, and the station address (0 to 126) is set by rotary switches or an SSA telegram. The transmission rate is detected automatically across the listed baud rates, from 9.6 kbit/s up to 12 Mbit/s.
Isolation and protection features include 3000 VDC DC-to-DC isolation, a high-speed iCoupler on the network side and 4 kV ESD protection on each terminal. The module is rated for an operating temperature of -25 ~ +75 °C and mounts on a DIN rail, with a power consumption of 3 W.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0 |
| Analog inputs: | 8 |
| Isolation: | 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| Analog Input | |
| Channels | 8 channel differential voltage input, Isolation Voltage:2500Vrms |
| Range | +/- 10V, +/- 5V, +/- 2.5V, +/-1.25V |
| Accuracy | +/- 0.1 of FSR |
| PROFIBUS | |
| Controller | Siemens SPC3 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 3 W |
| Mechanical | |
| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
