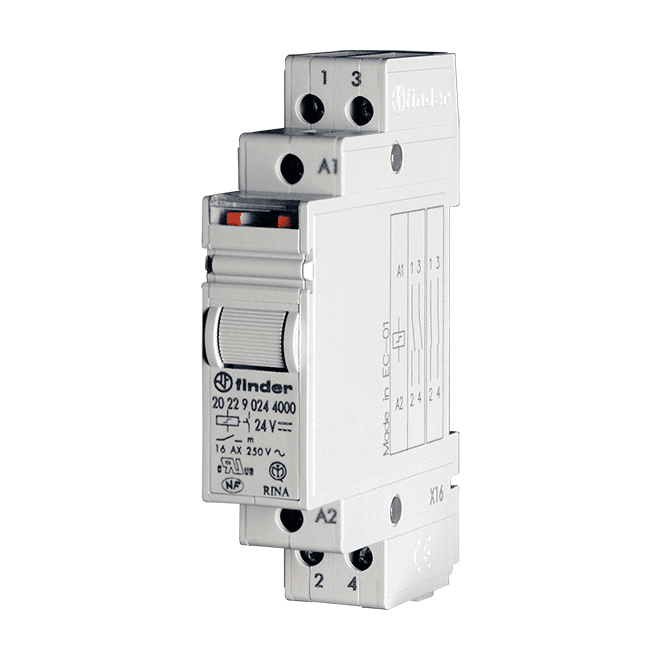

RM-20.22 2-Pole 16 A Relay Module, DIN-Rail Mount
A 17.4 mm wide DIN-rail relay module with two Form A relay outputs rated 16 A at 250 VAC, suited to switching loads in compact control panels.
- Two Form A relay outputs (2 pole, double phase switch)
- Contact rating 16 A @ 250 VAC
- 24 V step relay type
- Test button with mechanical indicators
- 17.4 mm wide, 35 mm DIN-rail (EN 50022) mount
- Operating temperature -40 ~ 70 °C
433,50 kr. pr. stk.
| 1–9 stk. | 433,50 kr. | |
|---|---|---|
| 10–30 stk. | 418,56 kr. | −3 % |
| 31+ stk. | 411,08 kr. | −5 % |
Produktinformation "RM-20.22 2-Pole 16 A Relay Module, DIN-Rail Mount"
The RM-20.22 CR is a 2-pole, 16 A step relay module for DIN-rail mounting. It provides two Form A relay outputs with a 24 V step relay type and a contact rating of 16 A at 250 VAC, making it a practical choice for switching mains-level loads from a control circuit.
The module is only 17.4 mm wide, so it fits compactly alongside other rail-mounted devices. A test button with mechanical indicators lets you check switching state during commissioning and fault finding.
- Operating and storage temperature range of -40 ~ 70 °C
- Contact material AgSnO2, rated for 100 · 10^3 electrical and 300 · 10^3 mechanical operations
| Product type: | Relay Module |
|---|---|
| Relay outputs: | 2 |
| Operating temperature: | -40 ~ 70 °C |
| Mounting: | DIN-rail |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 2 FORM A |
| Relay Output | |
| Channels | 2X FORM A |
| Type | 24 V Step Relay |
| Contact Material | AgSnO2 |
| Contact Rating | 16 A @ 250 VAC |
| Electrical Endurance | 100 · 10^3 |
| Mechanical Endurance | 300 · 10^3 |
| Mechanical | |
| Dimensions (mm) | 84 mm x 17.4 mm x 58.4 mm (L x W x H) |
| Installation | DIN-rail mounting |
| Environment | |
| Operating Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 70°C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
