TP-5120/NP 12.1-inch Resistive Touch Monitor, 800 x 600, Without PSU
12.1-inch 800 x 600 resistive touch monitor with RS-232 and USB, IP65 front panel and -20 ~ +70 °C operation. Supplied without a power supply.
- 12.1-inch TFT LCD with 800 x 600 resolution and 400 cd/m2 brightness
- 5-wire analogue resistive touch panel with 80% light transmission
- IP65-rated front panel with rugged aluminium bezel and plastic casing
- Full-function OSD controls for brightness, contrast, clock, phase, position and sharpness
- One RS-232 combo port and one USB port
- Wide operating temperature range of -20 ~ +70 °C
6.046,63 kr. pr. stk.
| 1–9 stk. | 6.046,63 kr. | |
|---|---|---|
| 10–30 stk. | 5.867,25 kr. | −3 % |
| 31+ stk. | 5.747,66 kr. | −5 % |
Produktinformation "TP-5120/NP 12.1-inch Resistive Touch Monitor, 800 x 600, Without PSU"

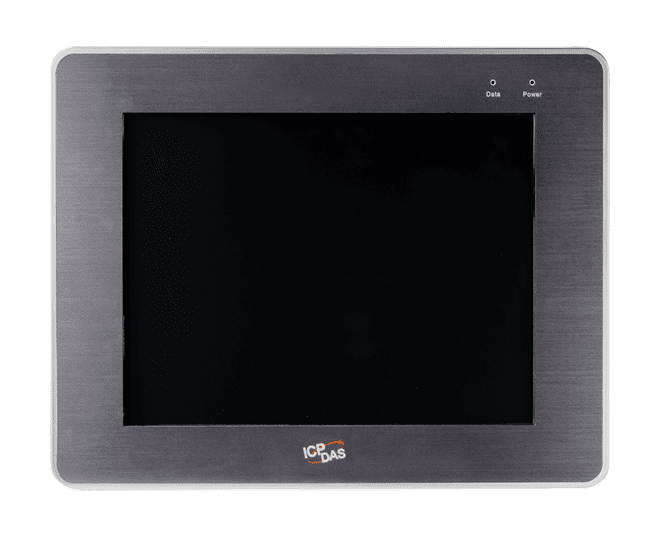

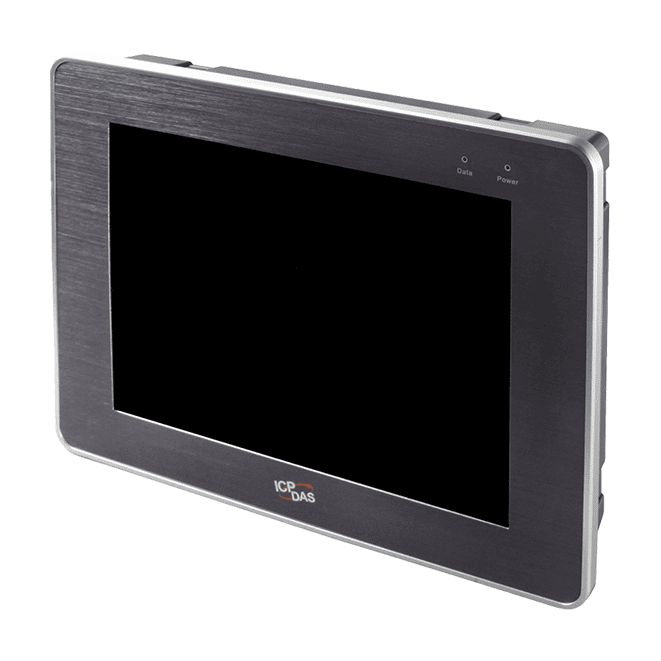

The TP-5120/NP CR is a 12.1-inch panel-mount touch monitor for operator interfaces. It pairs an 800 x 600 LED-backlit display with a 5-wire analogue resistive touch layer, so it can be operated with a finger, stylus or gloved hand.
The front panel is rated IP65 and the unit is specified for operation from -20 to +70 °C. Full-function on-screen display controls cover brightness, contrast, clock, phase, horizontal and vertical position and sharpness, so the display can be tuned on site without a host computer.

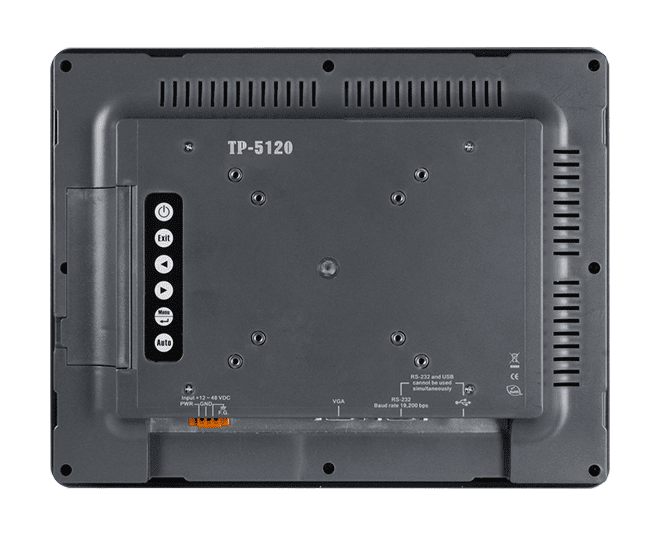

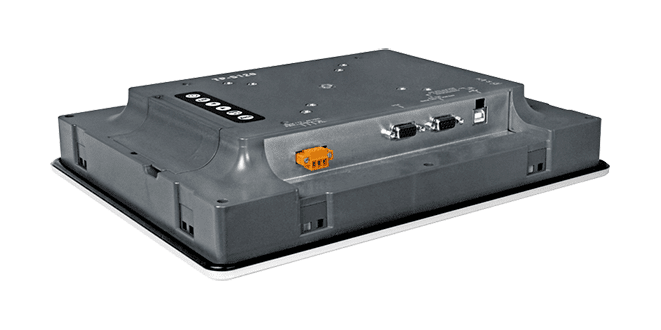

Connectivity is provided by one RS-232 combo port and one USB port. Drivers are listed for Windows, Windows IoT, WES, WinCE and Linux. The /NP suffix denotes the variant without a power supply, so a separate +12 ~ 48 VDC source is required. The source data notes that the TP-5120 is intended for use with ICP DAS PAC controllers, including the WP-5000 series, LinPAC series and XP-9000 series.
Applications
- Operator panels and HMI front ends for industrial control cabinets
- Displays for ICP DAS PAC control systems such as WP-5000, LinPAC and XP-9000 series
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232, USB |
| Ports: | 1 RS-232 (combo), 1 USB |
| Power input: | +12 ~ 48 VDC (external PSU not included) |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 12.1" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 13.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 323 x 254 x 65 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 1980 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
