TP-7170 17-inch Panel Mount Resistive Touch Monitor, 1280 x 1024
17-inch 1280 x 1024 resistive touch panel monitor with RS-232 or USB ports and a power supply, for panel mounting with an IP65 front panel.
- 17-inch TFT LCD with 1280 x 1024 resolution, 350 cd/m2 brightness and 500:1 contrast ratio
- 5-wire analog resistive touch panel with 80% light transmission
- IP65-rated front panel with rugged aluminium bezel
- Full-function OSD control for picture adjustment
- One RS-232 (combo) port and one USB port
- Wide operating temperature range of -20 ~ +70 °C
7.705,90 kr. pr. stk.
| 1–9 stk. | 7.705,90 kr. | |
|---|---|---|
| 10–30 stk. | 7.474,20 kr. | −3 % |
| 31+ stk. | 7.317,24 kr. | −5 % |
Produktinformation "TP-7170 17-inch Panel Mount Resistive Touch Monitor, 1280 x 1024"

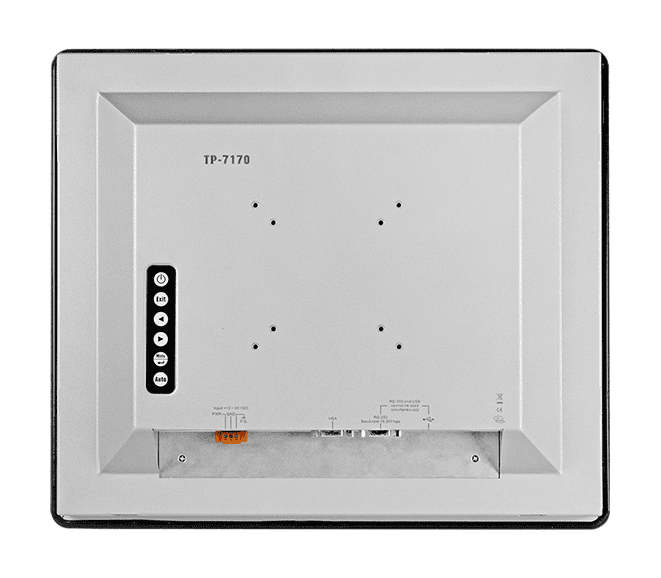

TP-7170 CR is a 17-inch TFT LCD touch monitor for panel-mounted operator interfaces. It pairs a 1280 x 1024 display with a 5-wire analog resistive touch panel and on-screen display (OSD) controls for brightness, contrast, clock, phase, position and sharpness.

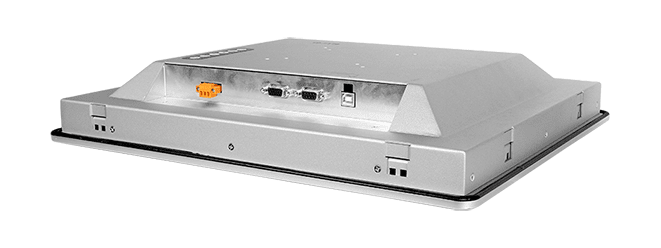

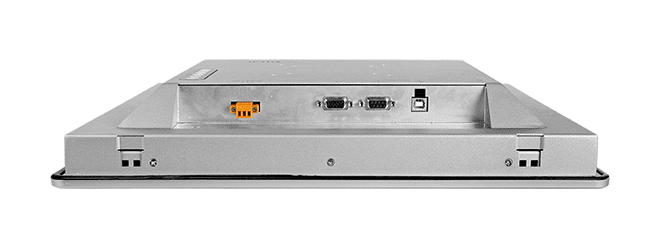

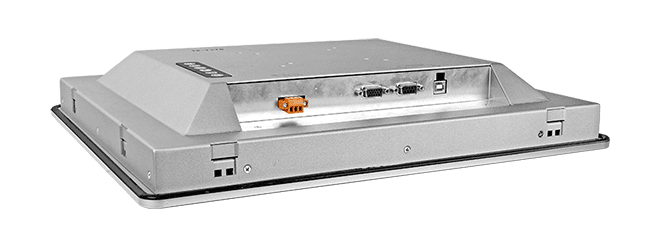

The front panel is rated IP65 and has a rugged aluminium bezel. The unit accepts +12 ~ 48 VDC, operates from -20 ~ +70 °C and provides one RS-232 (combo) port and one USB port. The ordering code includes a power supply.
The manufacturer states compatibility with ICP DAS PAC controllers, including the WP8000 series, LinPAC series and XP-9000 series. Driver support is listed for Windows, Windows IoT, WES, WinCE and Linux.
Applications
- Operator panels and HMI in industrial control cabinets
- Front-panel displays for ICP DAS PAC control systems
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232 (combo), USB |
| Ports: | 2 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 17" |
| Backlight Life | 50,000 hours |
| Brightness | 350 cd/m2 |
| Resolution | 1280 x 1024 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| Power Switch | Yes |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 22.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 413 x 359 x 70 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 3550 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
