TPD-280-M1 2.8-inch Touch HMI Device with RS-485 and Modbus RTU
A 2.8-inch resistive touch HMI with a 240 x 320 TFT display and one RS-485 port for Modbus RTU, designed for wall-mounted building and home automation control points.

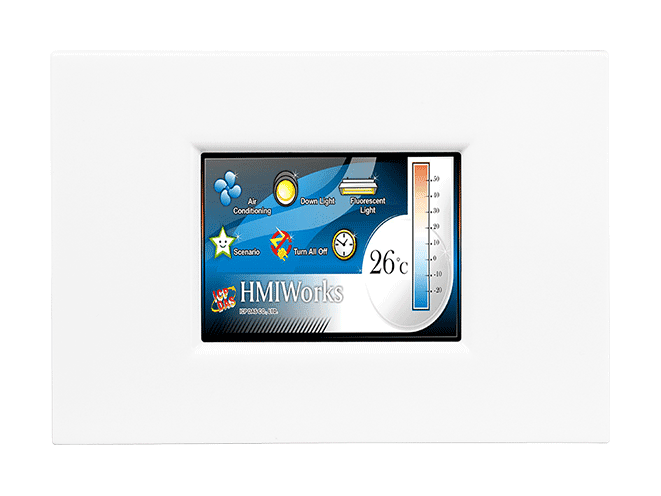

- 2.8-inch LCD TFT, 240 x 320 resolution, 65535 colours, resistive touch panel
- One RS-485 port with Self-Tuner and Modbus RTU protocol support
- Free HMIWorks development tool with GUI design
- Programmable with Ladder Designer or C language, including custom C protocol support
- Buzzer, rotary switch and reset button on the unit

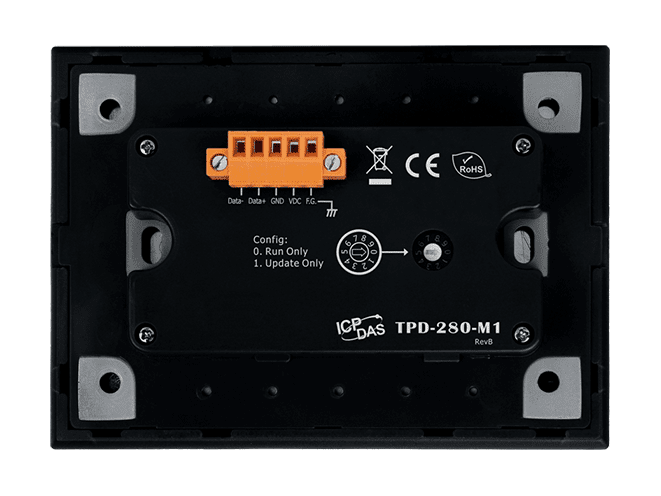

- +12 ~ 48 VDC terminal block power, 1.5 W consumption
1.270,61 kr. pr. stk.
| 1–9 stk. | 1.270,61 kr. | |
|---|---|---|
| 10–30 stk. | 1.233,24 kr. | −3 % |
| 31+ stk. | 1.210,82 kr. | −5 % |
Produktinformation "TPD-280-M1 2.8-inch Touch HMI Device with RS-485 and Modbus RTU"

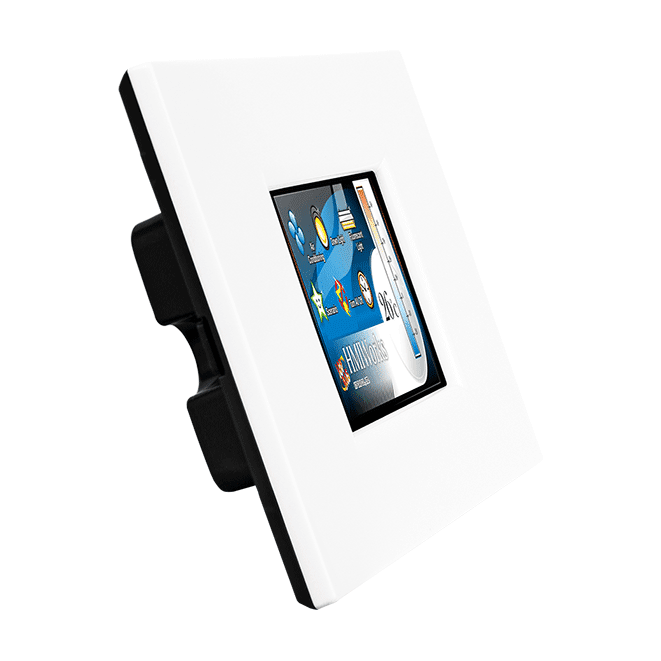

The TPD-280-M1 CR is a compact touch HMI for engineers who need a local operator interface in a wall-mounted control point. It pairs a 2.8-inch TFT colour display with a resistive touch panel and a single RS-485 port, so it can serve as a cost-effective replacement for mechanical switches in building and home automation projects. The white cover version (CR) is the variant offered here.
Programming is handled with the free HMIWorks tool, which supports GUI design. Engineers with a PLC background can use Ladder Designer, while those who prefer text-based development can use the C language environment, including support for a custom communication protocol written in C. The manufacturer states that a basic application can be created in Ladder Designer in no more than 30 minutes.
The unit draws 1.5 W from a +12 ~ 48 VDC terminal block and is housed in a 127 mm x 92 mm x 31 mm enclosure with a front panel rated IP40. It is rated for an operating temperature of -20 ~ +70 °C and carries CE, UKCA, FCC, RoHS and WEEE certifications.
Applications
- Building automation control points
- Home automation control panels
- Replacing mechanical switches with intelligent touch control
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall-mount |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| COM Ports | |
| Ports | 1 x RS-485 (including Self-Tuner) |
| Power | |
| Consumption | 1.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 31 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
