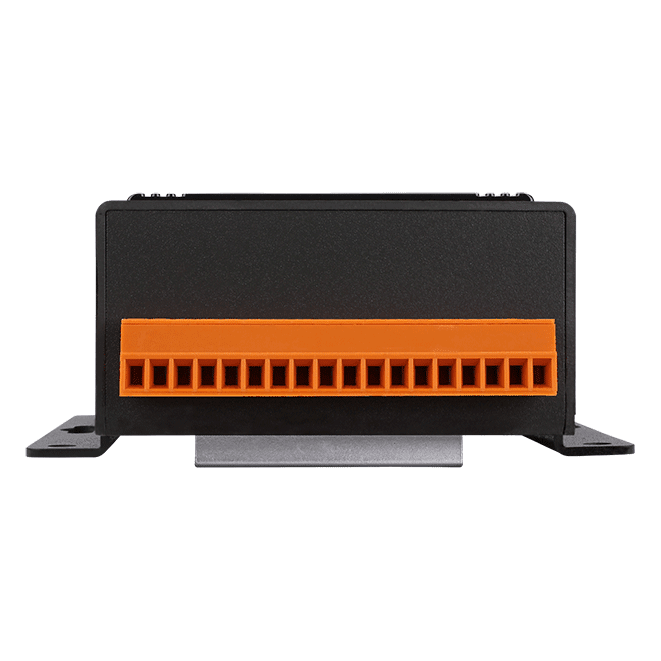

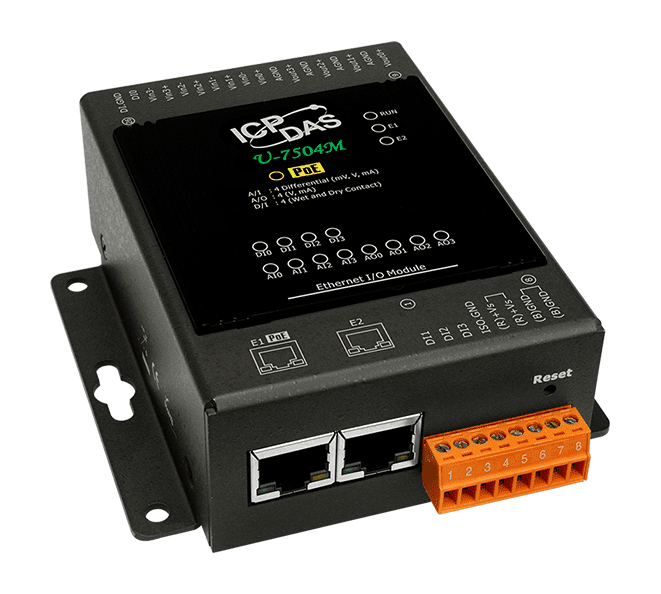

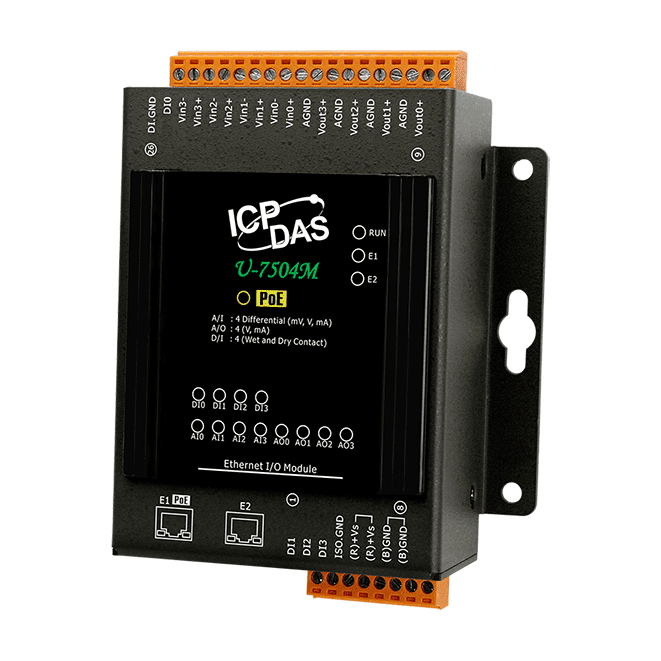

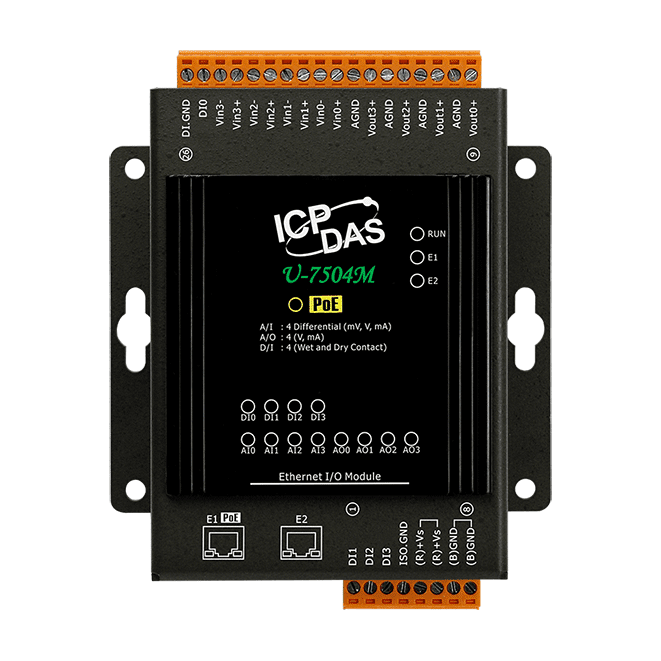

U-7504M OPC UA I/O Module, 4-ch DI, AI and AO with PoE
OPC UA I/O module with 4 digital inputs, 4 analog inputs and 4 analog outputs, a dual-port Ethernet switch for daisy-chaining and IEEE 802.3af Power over Ethernet.
- Simultaneous OPC UA Server/Client, MQTT Client and RESTful API operation over HTTP or HTTPS
- 4 digital inputs, 4 analogue inputs (16-bit) and 4 analogue outputs (12-bit) on one module
- Analogue inputs and outputs support voltage and current ranges, selectable by jumper
- Dual-port Ethernet switch for daisy-chain topology
- IEEE 802.3af (Class 3) PoE, or +12 ~ +48 VDC terminal block power
- IF, THEN, ELSE rule setting, scheduling and scaling of analogue signals
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "U-7504M OPC UA I/O Module, 4-ch DI, AI and AO with PoE"
U-7504M CR is a networked I/O module for engineers who need to bring local digital and analogue signals onto OPC UA, MQTT or RESTful API systems without a separate gateway. It combines 4 digital inputs, 4 analogue inputs and 4 analogue outputs in one unit, with the communication and rule processing handled on the module itself.
The built-in two-port 10/100 Base-TX switch allows modules to be daisy-chained, reducing cable runs and the number of switch ports needed. The module can be powered from an IEEE 802.3af (Class 3) PoE network or from a +12 ~ +48 VDC terminal block, which helps simplify wiring and power distribution in cabinets.
Configuration, control and I/O monitoring are carried out through the built-in web user interface in a browser. Scaling converts raw analogue readings into more meaningful values, while IF, THEN, ELSE rules and scheduled actions allow logic to run on the module for I/O and virtual points.
Applications
- Sending I/O values to cloud systems for display, analysis or control strategy
- Feeding field control systems with local digital and analogue I/O data
- Distributed I/O in cabinets where PoE reduces wiring and power sockets
| Product type: | Remote I/O module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 4 |
| Analog inputs: | 4 |
| Analog outputs: | 4 |
| Ports: | 2 |
| PoE: | Yes (IEEE 802.3af, Class 3) |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC, PoE |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 4 (Differential) |
| Type | Voltage, Current |
| Range | ±500 mV, ±1 V, ±5 V, ±10 V 0 to 20 mA, ±20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 samples/second (Total) Fast Mode: 50 samples/second (Total) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Mode Rejection | 86 dB (min.) |
| Normal Mode Rejection | 100 dB |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Analog Output | |
| Channels | 4 |
| Type | Voltage, Current |
| Range | +0 to +5 VDC, ±5 VDC, +0 to +10 VDC, ±10 VDC, 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 400 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
| Channels | 4 |
| Type | Dry Contact Wet Contact |
| ON Voltage Level | Dry: Open Wet: +1 VDC (max.) |
| OFF Voltage Level | Dry: Close to GND Wet: +3.5 to +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Overvoltage Protection | +30 VDC |
| Ethernet | |

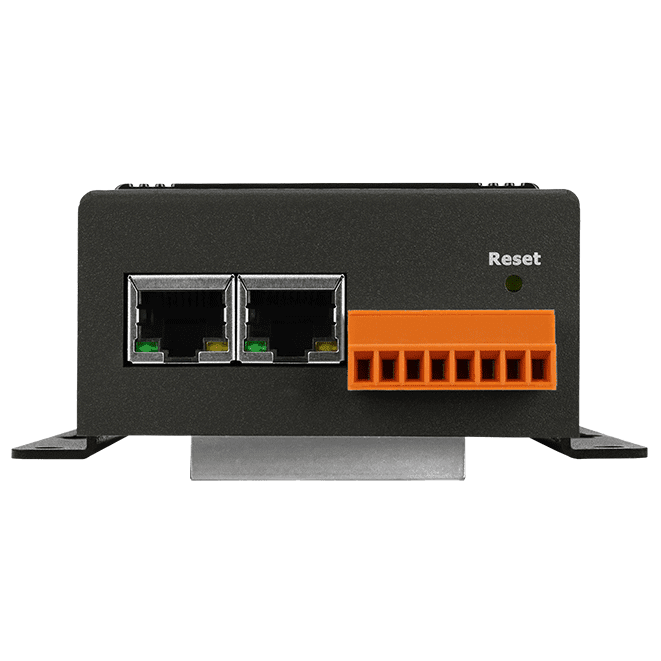

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 8.2 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

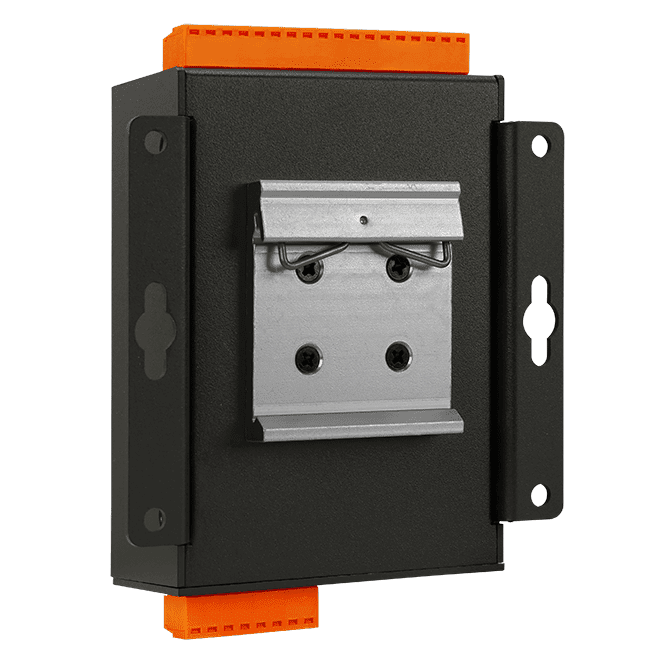

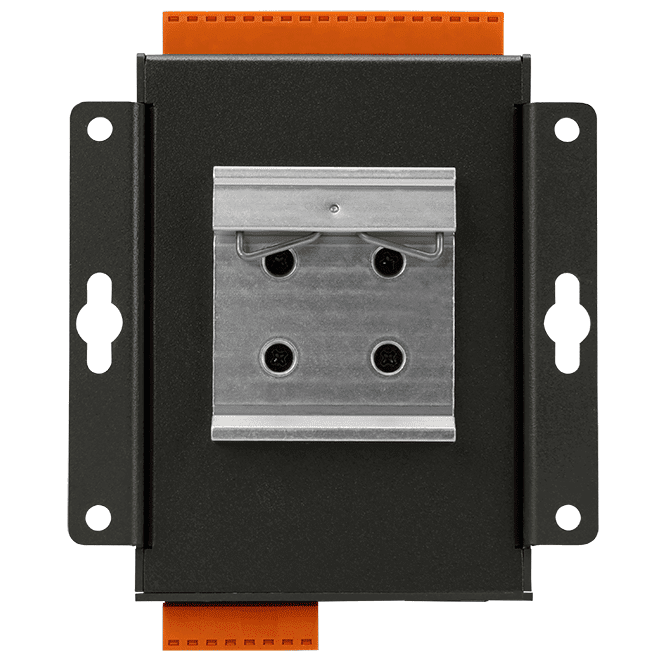

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
