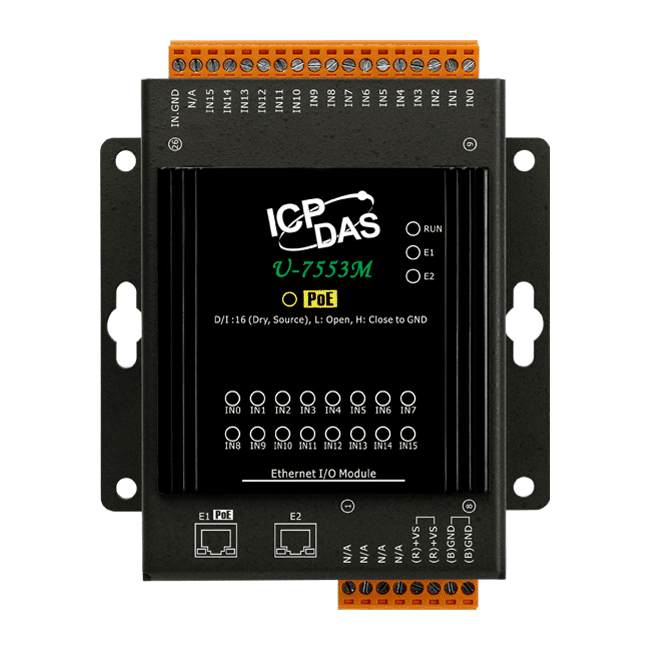

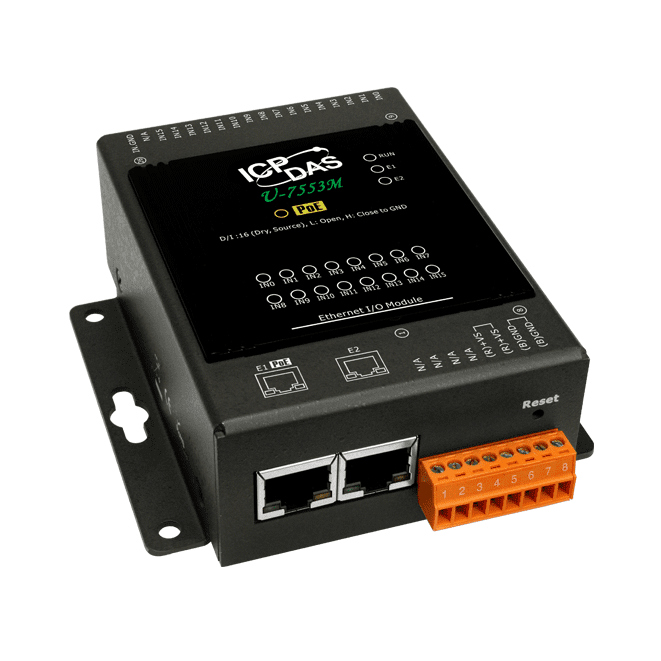

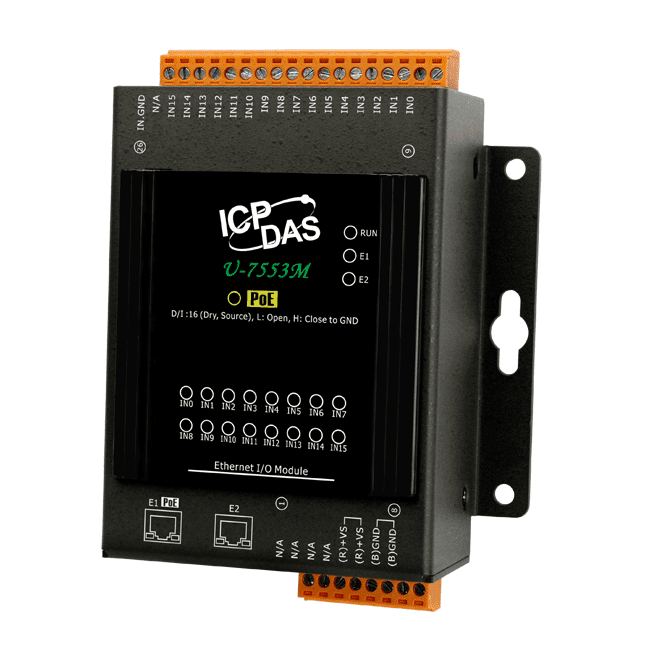

U-7553M OPC UA I/O Module, 16-ch DI with 2-Port Ethernet Switch and PoE
16-channel digital input OPC UA I/O module with a dual-port Ethernet switch for daisy-chain wiring, IEEE 802.3af PoE, and OPC UA, MQTT and RESTful API support.
- Simultaneous OPC UA Server/Client, MQTT Client and RESTful API (HTTP/HTTPS) operation
- 16 digital inputs, dry contact type, 100 Hz frequency, 32-bit counters with 5 ms minimum pulse width
- Dual-port 10/100 Base-TX switch with LAN bypass for daisy-chain topology
- IEEE 802.3af Class 3 PoE, or +12 ~ +48 VDC terminal block power
- IF, THEN, ELSE rule logic and schedule-based rule execution
- Built-in web user interface for configuration, control and I/O status monitoring
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "U-7553M OPC UA I/O Module, 16-ch DI with 2-Port Ethernet Switch and PoE"
The U-7553M is a remote I/O module with 16 digital input channels that reports input states directly over Ethernet. It can act as an OPC UA Server or Client and as an MQTT Client, and it offers a RESTful API over HTTP or HTTPS. These protocols can run at the same time, so one module can feed a field control system and a cloud platform in parallel.
A built-in dual-port 10/100 Base-TX switch lets units be daisy-chained, reducing the number of cables and external switches needed. The module can be powered from a PoE-enabled network under IEEE 802.3af Class 3, or from a +12 ~ +48 VDC terminal block. Local logic is set with IF, THEN and ELSE rules, and rules can be scheduled to run at specific times.
Configuration, control and monitoring are handled through the built-in web server, so no additional software is needed. The module also supports IoTstar cloud management and can write I/O trigger messages to a CSV file or as line messages for device tracking.
Applications
- Remote digital input monitoring over Ethernet
- Transferring I/O values to cloud or field control systems
- Daisy-chained Ethernet I/O installations
- Event-triggered device tracking via CSV file or line messages
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 16 |
| Ports: | 2 |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Ethernet | |

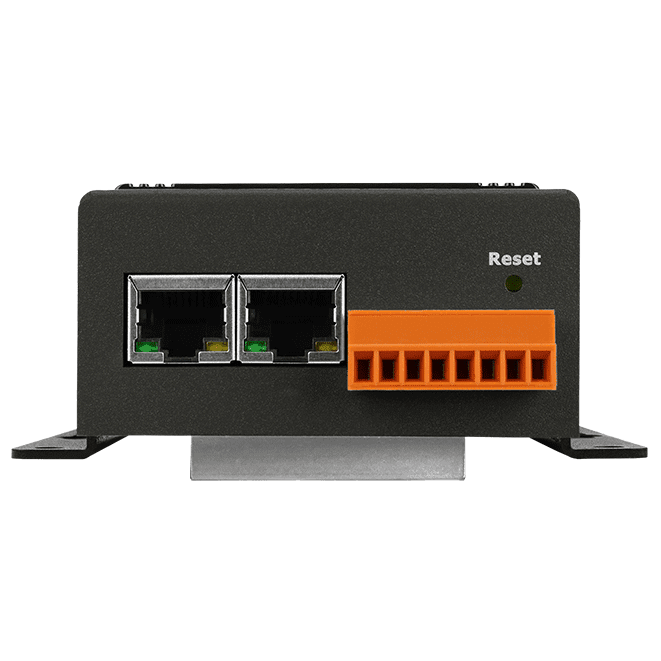

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.5 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

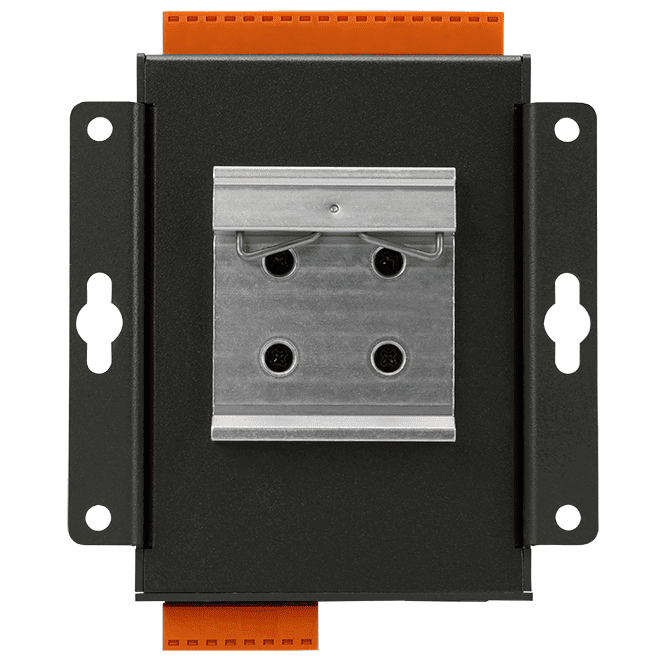

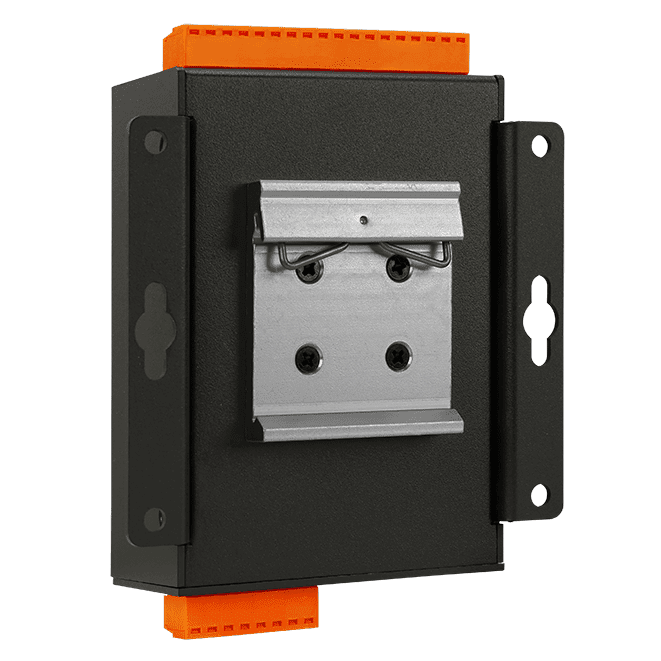

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
