UA-2241M IIoT Communication Server, 2 Ethernet Ports, OPC UA and MQTT Gateway
UA-2241M IIoT communication server with two Ethernet ports and a metal case. Bridges Modbus TCP/RTU/ASCII, MQTT and EtherNet/IP devices to OPC UA, MQTT and SNMP for IT/OT integration.
- Gateway from Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP sources to OPC UA, MQTT and SNMP, enabled simultaneously
- Data logger writing I/O data to a remote MS SQL, MySQL or MariaDB database with up to 1000 tags and to a local microSD card in CSV format
- Offline data recovery mechanism for the remote database
- Built-in MQTT broker including WebSocket support
- Security features including HTTPS, OpenVPN client, SNMP v3, communication encryption, and dynamic blocklist and whitelist
- Cloud connectivity to Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, plus IFTTT notifications
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "UA-2241M IIoT Communication Server, 2 Ethernet Ports, OPC UA and MQTT Gateway"
UA-2241M is an IIoT communication server for linking field devices with MES, ERP, SCADA and cloud platforms. It acts as a gateway to remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, and republishes that data as OPC UA, MQTT and SNMP at the same time.
The unit also works as a data logger. I/O data can be written to a remote MS SQL, MySQL or MariaDB database and saved locally in CSV format on a microSD card. An offline data recovery mechanism is provided for the remote database, and data can be forwarded to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeak. IFTTT logic triggers can send event notifications to mobile apps.

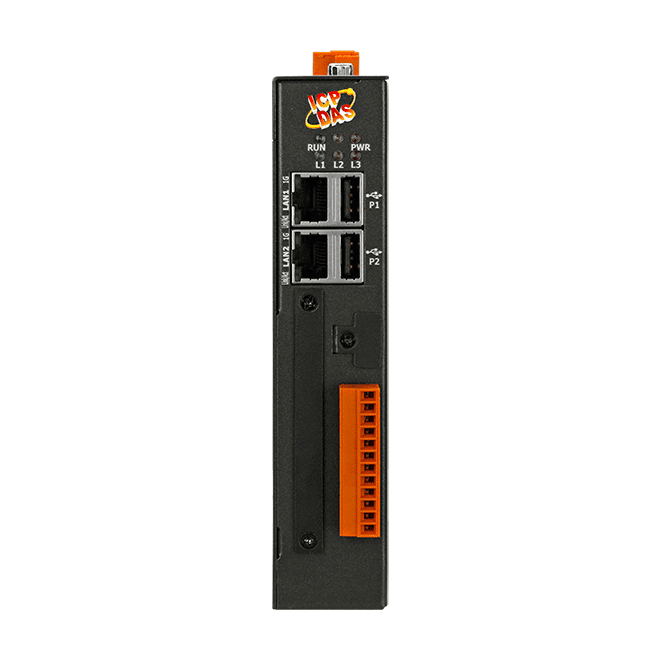

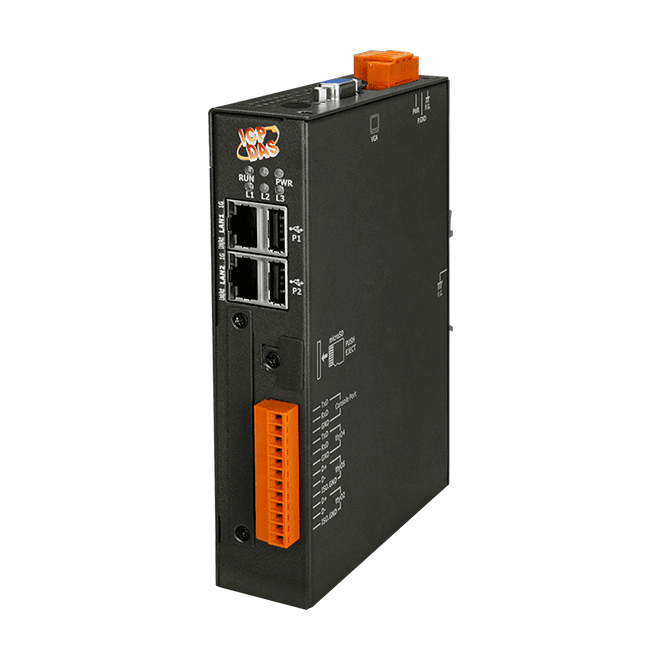

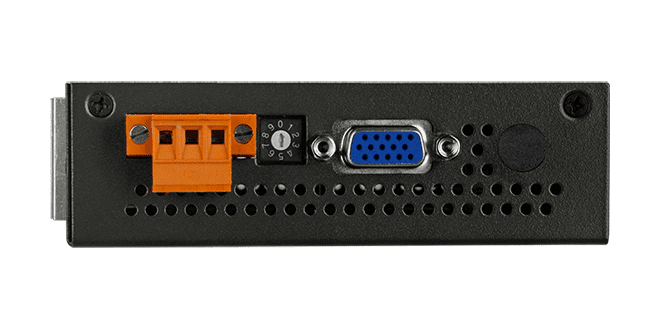

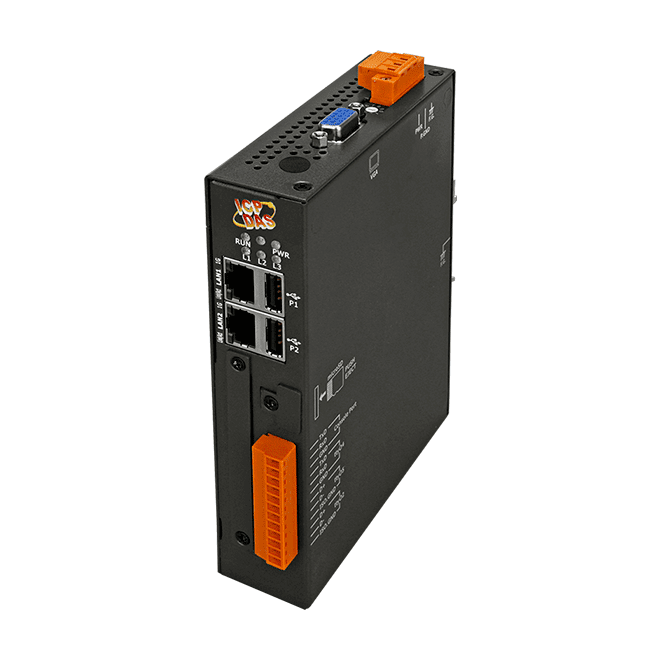

Hardware includes two RJ-45 Ethernet ports, two RS-485 ports (2500 VDC isolated), two RS-232 ports, a 1.0 GHz ARM CPU and a DIN-rail metal housing. One optional XV-board can add I/O or RS-485 expansion. The product is marked CE, UKCA, FCC, RoHS and WEEE.
Applications
- Connecting remote I/O and controllers to MES, ERP and SCADA systems
- IIoT data collection and forwarding to cloud platforms
- Historical I/O data logging to remote databases and local storage
- IT/OT protocol integration and interoperability
| Product type: | IIoT communication server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | EtherNet/IP, Modbus TCP, MQTT, OPC UA, SNMP |
| Ports: | 2 |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| Data Logger | |
|---|---|
| Local Data Logger | Record I/O data, and save to the local MicroSD card in CSV format. |
| Remote Database | Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB. Support keeping 1 database connection, with a max. 1000 Tags. |
| Software | |
| OS | Linux Kernel 3.2.14 |
| Protocol | · OPC UA Server · MQTT Broker/Client · Modbus TCP Master · Modbus RTU/ASCII Master · EtherNet/IP Scanner · SNMP Agent · OpenVPN Client |
| Function | · PID Function · Internal Module |
| IoT Service Integration | · Microsoft Azure · Amazon Web Services · IBM Cloud · ThingSpeak · IFTTT |
| Main Unit | |
| CPU | ARM CPU, 1.0 GHz |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 512 MB Flash microSD socket with one 32 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Display | |
| Signal | VGA (Analog RGB), reserved |
| LED Indicators | |
| Status | 1 x PWR 1 x RUN 3 x User Defined LEDs |
| I/O Expansion | |
| I/O Type | 1 Expansion Port. Support 1 optional XV-board to expand I/O or RS-485 ports (*1) |
| HMI | |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | 7N1, 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1, 8O1, 8N2, 8E2, 8O2 (Among which, Modbus RTU is available in: 8N1, 8E1, 8O1, 8N2) |
| USB | |
| Connector | 2 x 2.0 host |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 35 x 167 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
