VEX-144 PCI Express 4-Port RS-422/485 Serial Communication Board
PCI Express x1 serial card with four RS-422/485 ports, configurable per port for half-duplex RS-485 or full-duplex RS-422 at up to 115200 bps, for industrial and lab PC systems.
- Four RS-422/485 serial ports on a PCI Express x1 card
- Each port selectable as RS-485 half-duplex or RS-422 full-duplex
- Baud rates from 50 to 115200 bps; parity, data and stop bit options
- Built-in COM-Selector (8-bit DIP switch) for manual COM port numbering
- Up to 128 KB software buffer per COM port under Windows
- 128-byte hardware FIFO per port
1.068,81 kr. pr. stk.
| 1–9 stk. | 1.068,81 kr. | |
|---|---|---|
| 10–30 stk. | 1.038,91 kr. | −3 % |
| 31+ stk. | 1.016,49 kr. | −5 % |
Produktinformation "VEX-144 PCI Express 4-Port RS-422/485 Serial Communication Board"

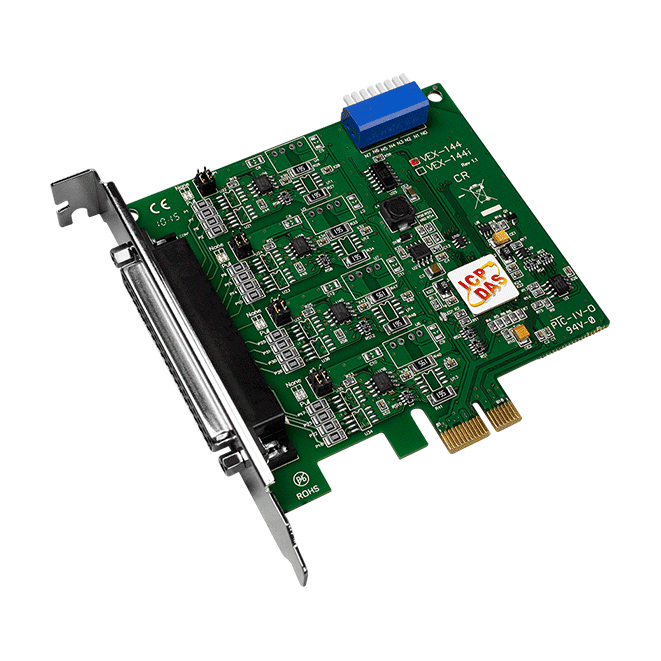

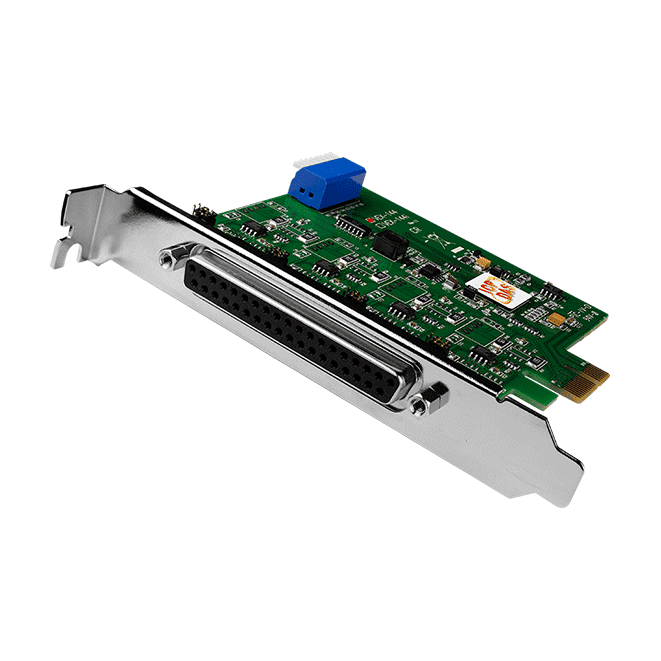

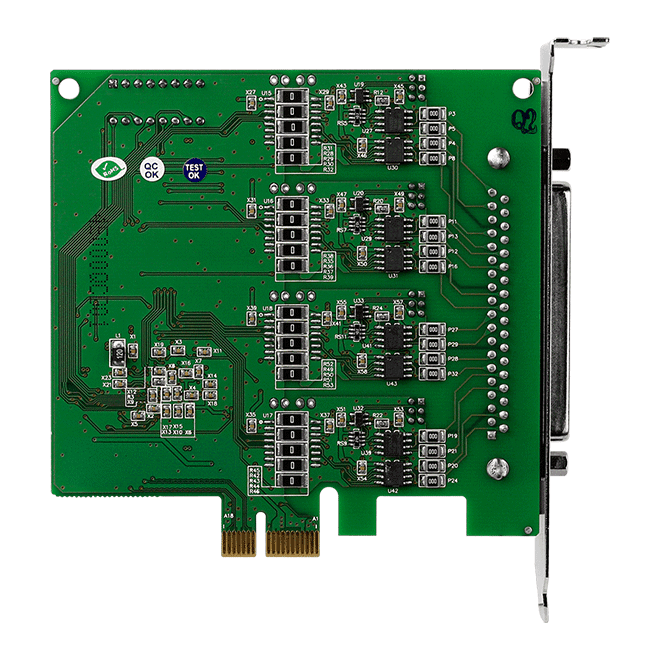

The VEX-144 CR adds four RS-422/485 serial ports to a PC through a PCI Express x1 slot. Each port can be set to RS-485 for half-duplex or RS-422 for full-duplex communication, with speeds from 50 to 115200 bps, making it suited to adding serial devices to a host without spare COM ports.
COM port numbers can be assigned manually using the 8-bit DIP switch COM-Selector, or left to the driver to pick an available number automatically. Under Windows the driver provides up to 128 KB of software buffer per COM port, which helps with large file transfers. Each port also has a 128-byte hardware FIFO.
This is the standard, non-i version, so photocoupler data line isolation and ESD protection are not included. Where those features are required, the i versions of the VEX-144 series provide them. The card is a short design and ships with one CA-4002 connector.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | PCI Express serial board |
|---|---|
| Interface: | PCI Express x1, RS-422/485 |
| Ports: | 4 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB-37 |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 4 x RS-422/485 (RS-422: TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-, GND / RS-485: Data+, Data-, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 101 x 114 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
