VP-1239-CE7-1500 ViewPAC 5.7-inch InduSoft PAC with 3 I/O Slots
WinCE 7.0 ViewPAC combining a 5.7-inch touch TFT, six-key keypad and 3 I/O slots with the 1500-tag InduSoft Web Studio Runtime pre-installed.
- Cortex-A8 CPU (32-bit, 1 GHz) running Windows CE .NET 7.0
- InduSoft Web Studio Runtime pre-installed, 1500 tags
- 5.7-inch 640 x 480 TFT touch panel with six-key rubber keypad and 0 ~ 9 rotary switch
- Three slots for high-profile I/O modules
- Ethernet 10/100/1000Base-TX, RS-232, isolated RS-485 (2500 VDC) and two USB ports
- IP65 front panel with operating temperature of -20 ~ +70 °C
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "VP-1239-CE7-1500 ViewPAC 5.7-inch InduSoft PAC with 3 I/O Slots"

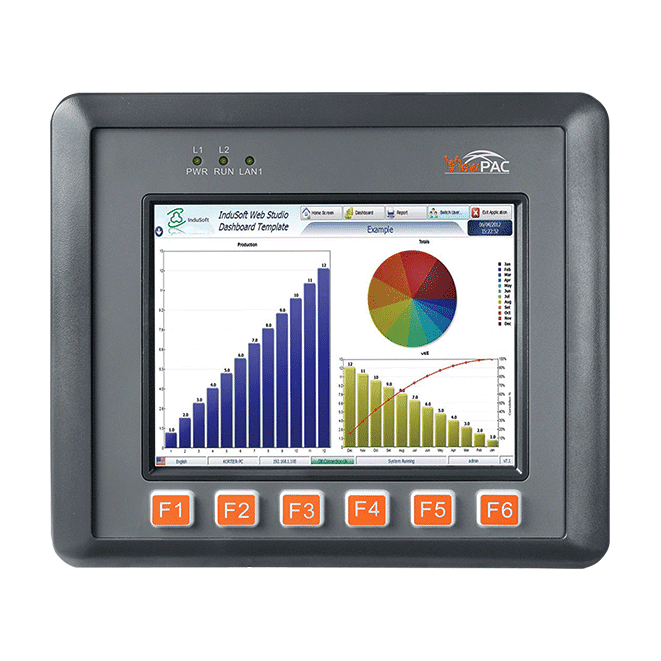

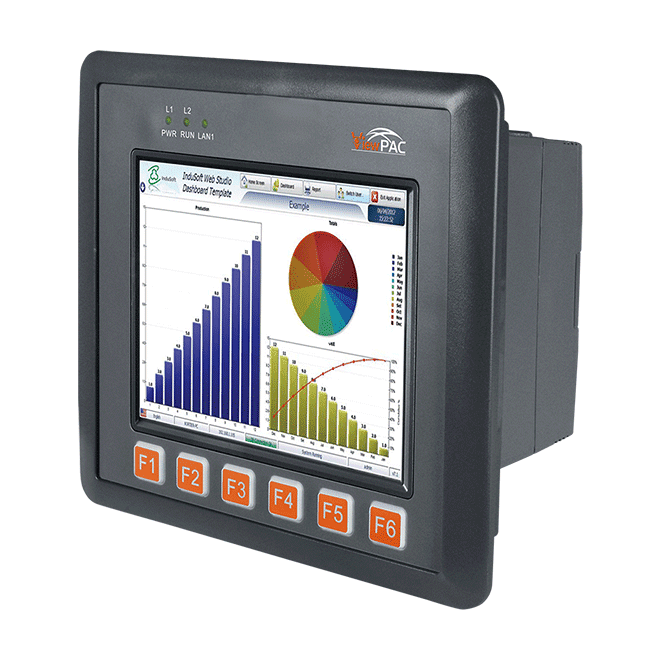

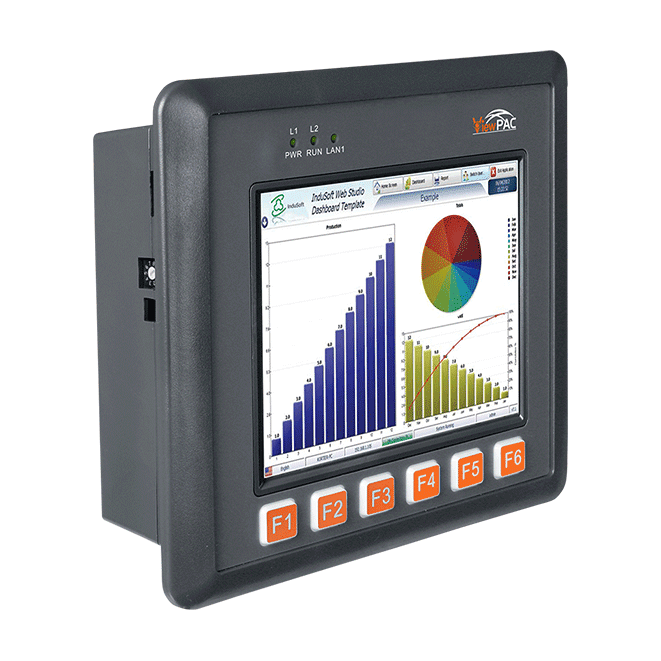

The VP-1239-CE7-1500 combines a Windows CE 7.0 programmable automation controller with a 5.7-inch touch TFT display and a six-key rubber keypad in one unit. A Cortex-A8 CPU running at 1 GHz runs the control and HMI functions on a single platform, so the operator panel and the logic do not need separate hardware. The -1500 suffix denotes the 1500-tag InduSoft Web Studio Runtime, which is pre-installed.

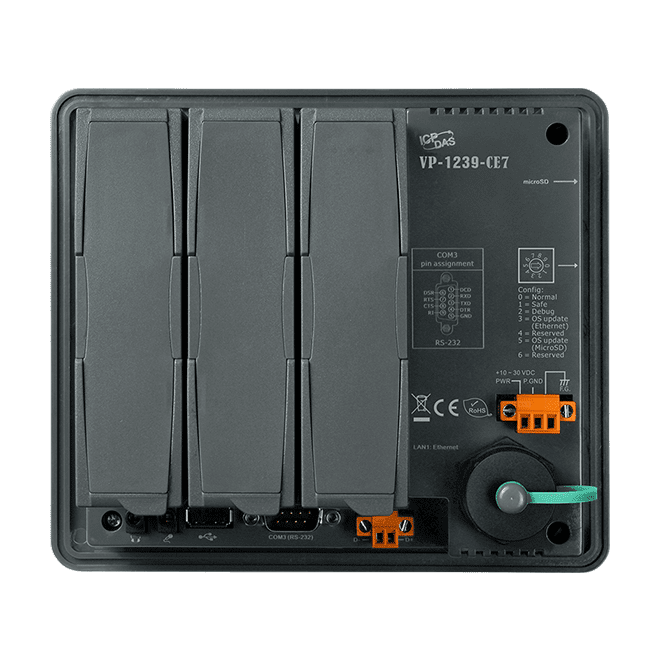

Expansion is through three slots for high-profile I/O modules. Communications comprise one 10/100/1000Base-TX Ethernet port, one non-isolated RS-232 port, one RS-485 port with 2500 VDC isolation and two USB connectors. Memory includes 128 MB SDRAM, 256 MB flash, 128 KB MRAM and a microSD socket fitted with a 4 GB card.
Web HMI pages can be opened from Internet Explorer over an intranet, the internet or a dial-up modem, and the unit provides FTP, web and embedded SQL servers. A 64-bit hardware serial number supports software protection. The IP65 front panel and -20 ~ +70 °C operating range make it suitable for demanding panel installations, and DLLs are supplied for VC and Visual Studio .NET 2008 development.
Applications
- HMI development
- SCADA systems
- Embedded instrumentation and control applications
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Ports: | 5 |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Housing: | IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE.NET 7.0 |
| Protocol | Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem. |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (32-bit and 1 GHz) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | SDRAM 128 MB |
| Storage | Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| Watchdog Timer | Yes |
| Display | |
| Size | 5.7" TFT (Resolution 640 x 480) |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 3 x Power and Communication |
| I/O Expansion | |
| Slots | 3 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 7.2 W (0.3 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 182 x 158 x 125 (W x L x H) |
| Ingress Protection Rating | Front panel: IP65 |
| Environment | |
| Operating Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
