VP-4239-CE7 10.4-inch InduSoft ViewPAC with 3 I/O Slots (WinCE 7.0)
A 10.4-inch touch ViewPAC combining a WinCE 7.0 controller, InduSoft Web Studio Runtime, graphic display and keypad, with three slots for I/O expansion.
- Cortex-A8 CPU at 1 GHz running Windows CE .NET 7.0
- 10.4-inch TFT display, 800 x 600 resolution, with touch panel
- InduSoft Web Studio Runtime pre-installed, 300-tag licence variant
- Three slots for high-profile I/O modules
- IP65 front panel and six-key rubber keypad
- One Ethernet port (10/100/1000Base-TX), RS-232 and 2500 VDC isolated RS-485 ports, three USB
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "VP-4239-CE7 10.4-inch InduSoft ViewPAC with 3 I/O Slots (WinCE 7.0)"

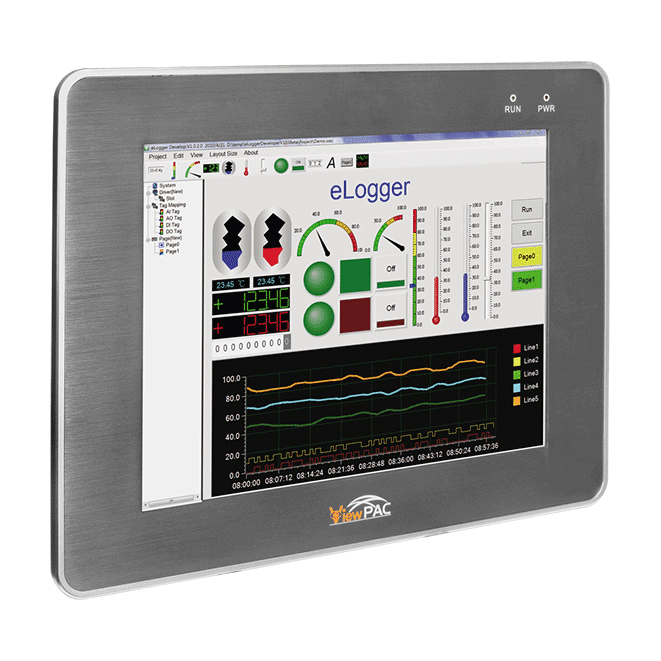

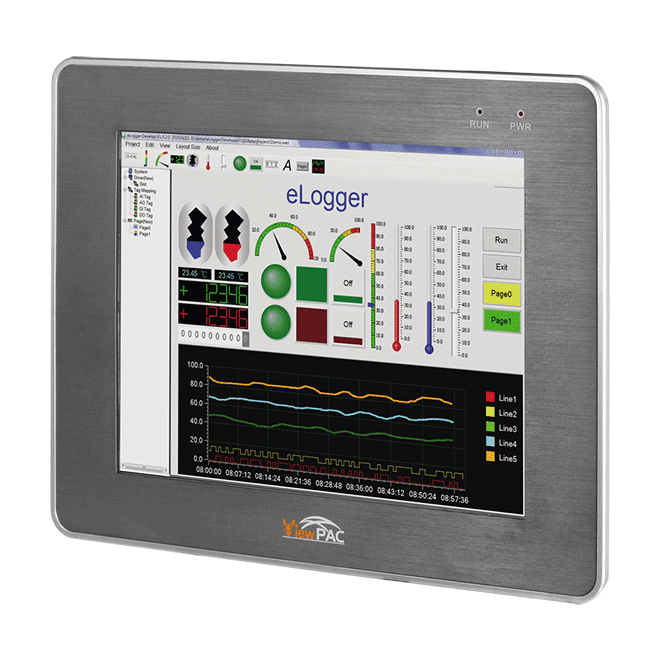

The VP-4239-CE7 CR is a panel-mounted controller that brings PAC logic, an 800 x 600 touch display and a six-key rubber keypad into one unit. It runs Windows CE .NET 7.0 on a Cortex-A8 CPU at 1 GHz, with InduSoft Web Studio Runtime pre-installed, so it suits operator interface and control tasks at the machine or panel.

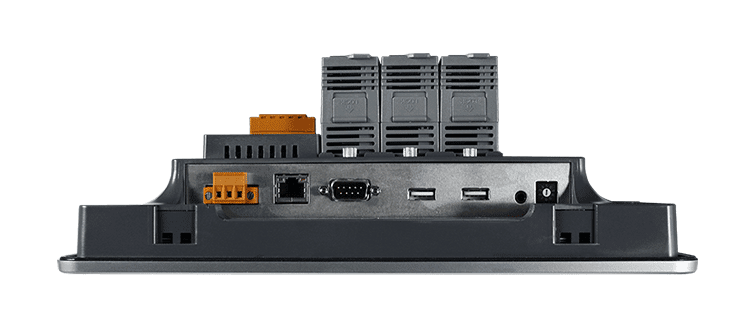

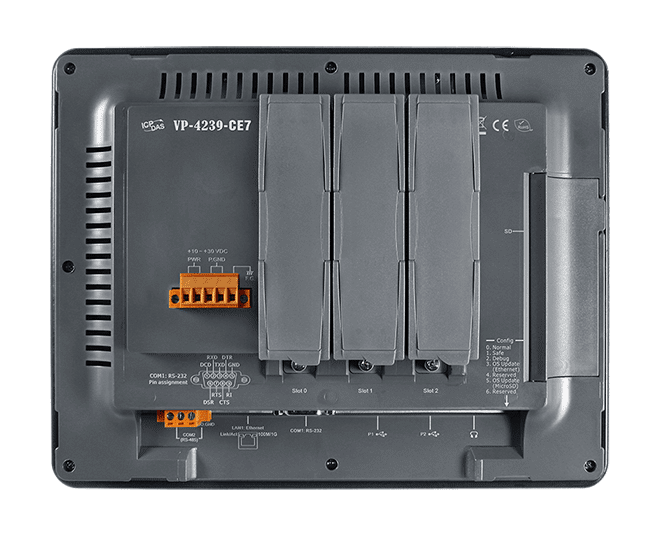

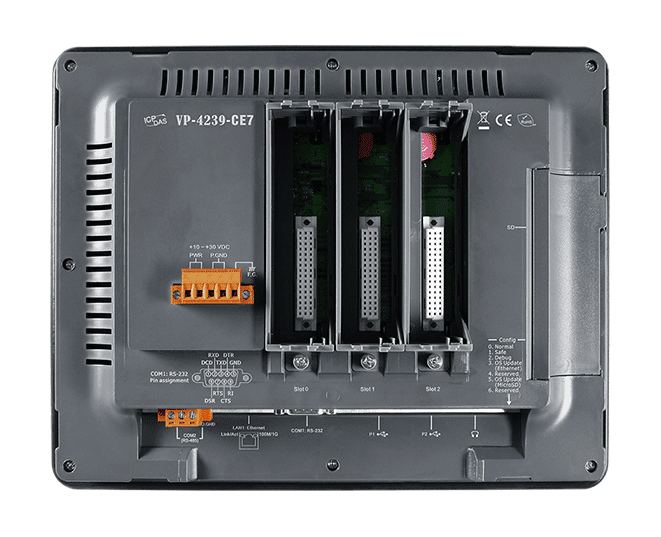

Three high-profile I/O module slots let you add input and output channels as the application grows. The unit provides one RJ-45 Ethernet port, one non-isolated RS-232 port, one 2500 VDC isolated RS-485 port and three USB connectors, giving a range of options for connecting field devices and host systems.
The front panel is rated IP65 and the unit operates from -20 to +70 °C. Its 64-bit hardware serial number supports software protection, and the 128 KB MRAM and 16 KB EEPROM provide non-volatile storage. The 10.4-inch model is the 300-tag InduSoft variant in the VP-x239-CE7 series.
Applications
- Operator interface and HMI at machine or panel level
- SCADA systems
- Embedded instrumentation and control applications
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Ports: | 1 Ethernet, 2 serial, 3 USB |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Housing: | IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE.NET 7.0 |
| Protocol | Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem. |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (32-bit and 1 GHz) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | SDRAM 128 MB |
| Storage | Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| Watchdog Timer | Yes |
| Display | |
| Size | 10.4" TFT (Resolution 800 x 600) |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 x Power and Communication |
| I/O Expansion | |
| Slots | 3 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
| Jack | Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 3 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 8.5 W |
| Mechanical | |
| Dimensions (mm) | 293 x 231 x 129 (W x L x H) |
| Ingress Protection Rating | Front panel: IP65 |
| Environment | |
| Operating Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
