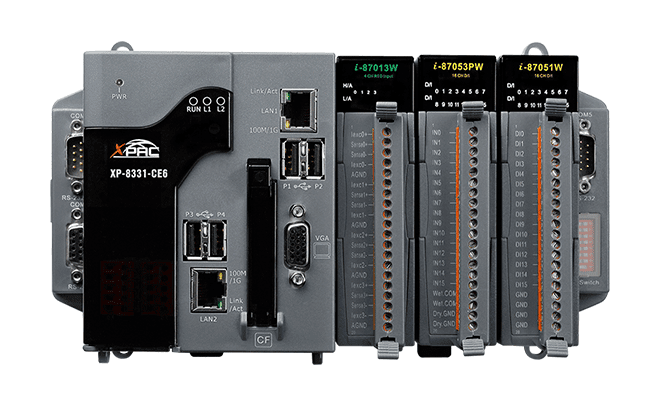

XP-8331-CE6 3-Slot PAC with x86 1 GHz Dual-Core CPU and WinCE 6.0
3-slot Windows CE 6.0 PAC with a 1 GHz dual-core x86 CPU for I-8K and I-87K I/O expansion, dual Gigabit Ethernet and redundant power input.
- 3 expansion slots for I-8K and I-87K I/O modules
- x86 CPU, 1 GHz, dual-core running Windows CE 6.0
- Hard real-time capability with dual watchdog timer
- 2 GB DDR3 memory, 32 GB flash and MRAM for data retention
- 2 x 10/100/1000BASE-T Ethernet ports
- Serial ports (RS-232/485), 4 x USB 2.0 host and VGA output
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "XP-8331-CE6 3-Slot PAC with x86 1 GHz Dual-Core CPU and WinCE 6.0"
The XP-8331-CE6 is a standard programmable automation controller built around a 1 GHz dual-core x86 CPU and Windows CE 6.0. It offers three expansion slots for high-profile I-8K parallel and I-87K serial I/O modules, so engineers can scale the I/O count to suit a control panel without changing the controller platform.
Windows CE 6.0 provides hard real-time capability, a small core footprint, fast boot and deterministic control. The unit includes 2 GB DDR3 memory, 32 GB flash, 16 KB EEPROM and 512 KB MRAM for data retention, along with a built-in real-time clock and dual watchdog timer. A 64-bit hardware serial number supports software copy protection, and the software stack includes .NET Compact Framework 3.5 and an SDK DLL for Visual Studio .NET 2005/2008.
Connectivity includes two 10/100/1000BASE-T Ethernet ports, serial ports for RS-232 and RS-485, four USB 2.0 host ports and a VGA output. The controller accepts +10 ~ 30 VDC with redundant power inputs and operates from -25 ~ +75 °C. It is supplied with CE, UKCA, FCC, RoHS and WEEE documentation and can be mounted on a DIN rail or wall.
Applications
- Industrial control with modular I/O expansion
- Machine and process control requiring Windows-based software
- Systems needing a VGA display output on the controller
- Software-protected control applications using the hardware serial number
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0, VGA |
| Ports: | 2 x RJ-45 |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ 30 VDC, redundant |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 6.0 |
| Service | FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio .NET 2005/2008 |
| Main Unit | |
| CPU | x86 CPU, 1 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | 32 GB Flash, CF Card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | XP-8031-CE6: 0 XP-8131-CE6: 1 XP-8331-CE6: 3 XP-8731-CE6: 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address * (except XP-8031-CE6) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485; (3000 VDC Isolated) * (XP-8031-CE6 provides 3 x RS-232) |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-8031-CE6: 12 W XP-8131-CE6: 16.6 W XP-8331-CE6: 16.8 W XP-8731-CE6: 18 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | XP-8031-CE6: 137 x 132 x 125 XP-8131-CE6: 169 x 132 x 125 XP-8331-CE6: 231 x 132 x 125 XP-8731-CE6: 355 x 132 x 125, (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
