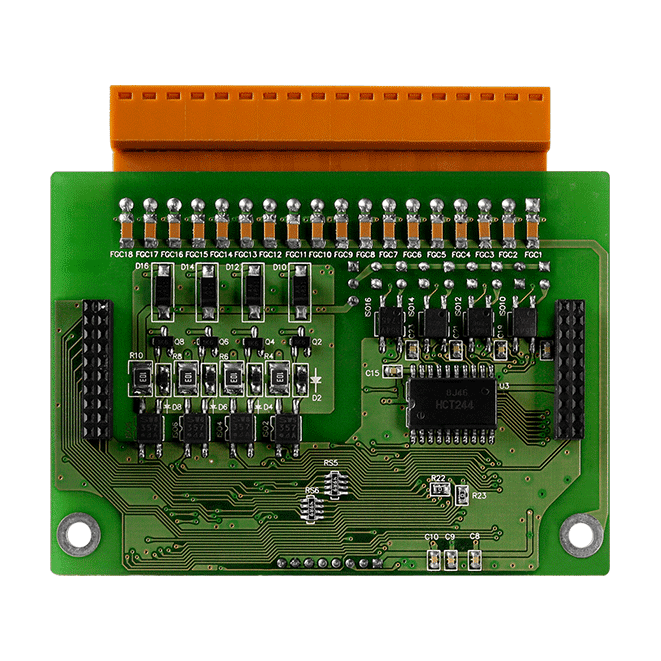

XW107i XW-Board, 8-ch Isolated DI and 8-ch Isolated Sink DO Expansion
Plug-in XW-board adding 8 isolated wet-contact digital inputs and 8 isolated NPN sink outputs for uPAC-5000, LP-51xx and WP-51xx PACs.
- 8 isolated digital inputs, 3750 VDC isolation
- Wet-contact inputs with ON level +10 to +50 VDC and OFF level +4 VDC maximum
- Sink or source input mode selected by jumper
- 8 isolated sink-type (NPN) open-collector outputs
- Output load 10 to 40 VDC, 200 mA per channel at 25 °C
- 1.4 A overload protection on outputs
508,25 kr. pr. stk.
| 1–9 stk. | 508,25 kr. | |
|---|---|---|
| 10–30 stk. | 493,30 kr. | −3 % |
| 31+ stk. | 485,82 kr. | −4 % |
Produktinformation "XW107i XW-Board, 8-ch Isolated DI and 8-ch Isolated Sink DO Expansion"
XW107i CR is an XW-board expansion module that adds 8 isolated digital inputs and 8 isolated digital outputs to a compatible PAC. It is intended for the uPAC-5000, LP-51xx and WP-51xx series, and each PAC accepts only one XW-board.
The digital inputs are wet-contact type, with ON levels from +10 VDC to +50 VDC and an OFF level of +4 VDC maximum. Sink or source operation is selected by jumper, and each input channel is isolated to 3750 VDC with 60 VDC overvoltage protection. The outputs are open-collector, sink-type (NPN) channels rated for 10 to 40 VDC loads at 200 mA per channel at 25 °C, with 3750 VDC isolation and 1.4 A overload protection.
The board draws 0.4 W and measures 66 mm x 82 mm x 17 mm (W x L x H). It operates from -25 to +75 °C and stores from -30 to +75 °C, at 10 to 95% RH non-condensing. Certifications listed for this ordering code are CE, UKCA, FCC, RoHS and WEEE.
Applications
- Adding digital I/O to uPAC-5000, LP-51xx and WP-51xx controllers
- Reading wet-contact switch and sensor signals from 10 to 50 VDC circuits
- Switching 10 to 40 VDC sink-type loads from a PAC
| Product type: | XW-board expansion |
|---|---|
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source (Jumper setting) |
| ON Voltage Level | +10 VDC ~ +50 VDC |
| OFF Voltage Level | +4 VDC max. |
| Isolation | 3750 VDC |
| Input Impedance | 10 K Ohm |
| Overvoltage Protection | 60 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ 40 VDC |
| Load Current | 200 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Isolation | 3750 VDC |
| Power | |
| Consumption | 0.4 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 17 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
