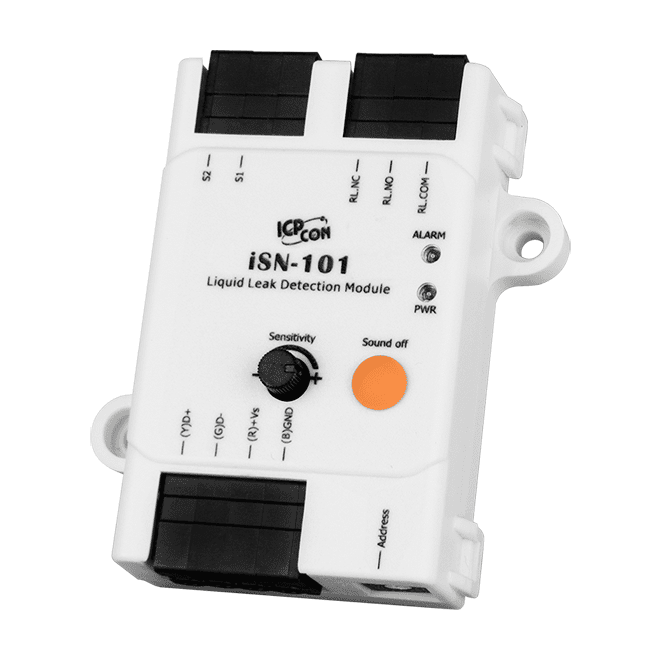

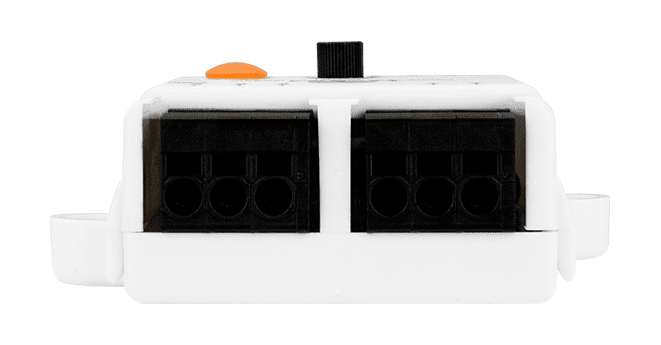

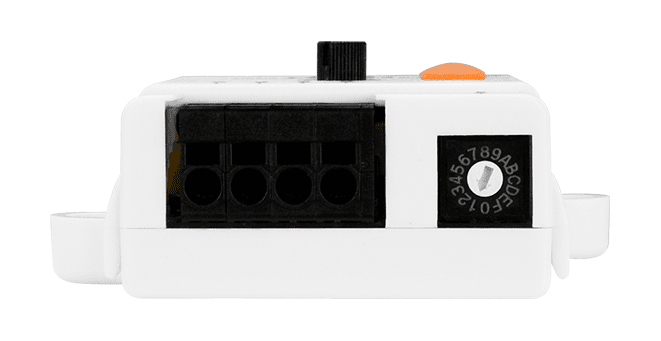

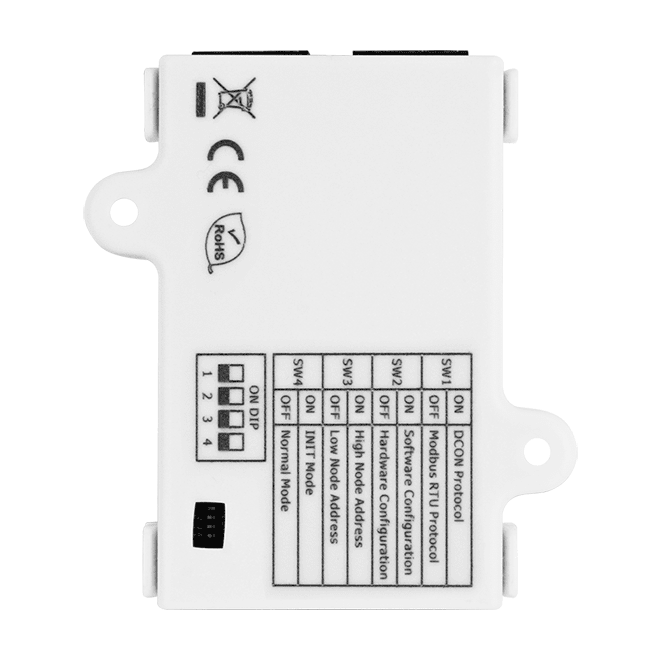

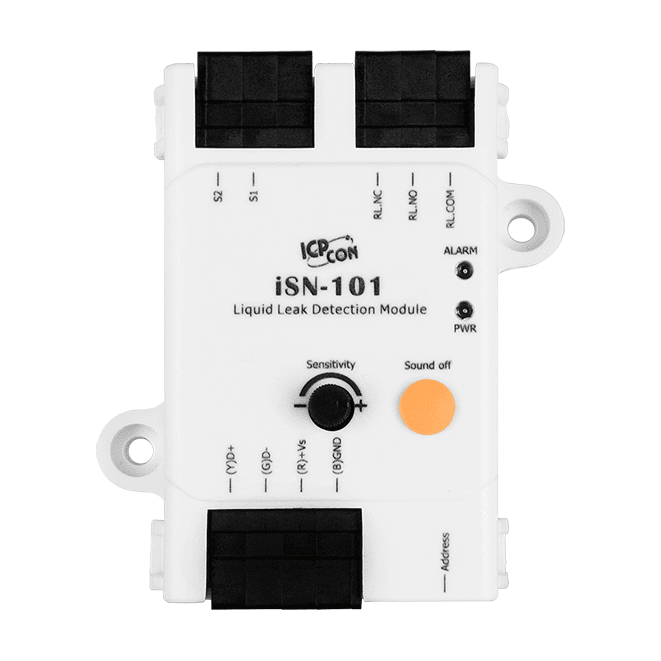

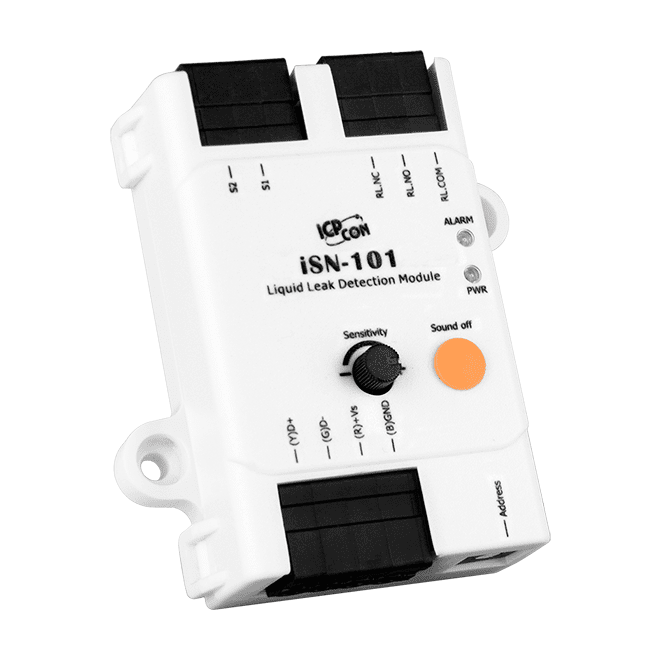

iSN-101/S/DIN Liquid Leak Detection Module, 1-ch, Modbus RTU and DCON
DIN-rail mounted 1-channel liquid leak detection module with a relay alarm output and RS-485 support for Modbus RTU or DCON. Includes a 1m leak detection cable and a 3m extended cable.
- 1-channel liquid leak detection for point (probe) or line (cable) sensing
- Sense cable and extended cable runs of up to 500 metres in total
- Single SPST Form A relay output for the leakage alarm
- Adjustable sensitivity from 26 KΩ to 580 KΩ via rotary switch
- Audible buzzer with push-button mute, plus power and alarm LED indicators
- One RS-485 port supporting Modbus RTU or DCON
725,00 kr. pr. stk.
| 1–9 stk. | 725,00 kr. | |
|---|---|---|
| 10–30 stk. | 702,57 kr. | −3 % |
| 31+ stk. | 687,63 kr. | −5 % |
Produktinformation "iSN-101/S/DIN Liquid Leak Detection Module, 1-ch, Modbus RTU and DCON"
The iSN-101/S/DIN CR is a 1-channel liquid leak detector that switches its own relay when water is sensed, so it can drive a local alarm or signal a remote system without an additional converter. It is designed for point detection with a probe or line detection with a sense cable, and it suits monitoring in buildings, plant rooms and equipment areas where early warning of water ingress matters.
Sensitivity is set on a rotary switch across 26 KΩ to 580 KΩ, and the module provides an audible buzzer that can be silenced with a front push button. Its single SPST Form A relay makes the alarm state available to building management, PLCs or other collection hosts. Leak detection cable runs of up to 500 metres are supported, including the extended cables, and cable-break detection is available when used with the CA-LLD-DC100X-Lxxx sense cable.
For networked monitoring, the module communicates over one RS-485 port using Modbus RTU or DCON, with software-configured baud rates from 1200 to 115200 bps. This DIN-rail variant is supplied with a 1m liquid leak detection cable and a 3m extended cable, and it operates from a 10 to 30 VDC supply.
Applications
- Water pipe leak monitoring in buildings
- Monitoring of water, fire and sewage pipes
- Detection of leaks around domestic water, drainage and electric equipment
- Real-time leak detection in computer rooms, warehouses, libraries and museums
- Monitoring of air handling equipment, refrigeration units, liquid containers and pump tanks
| Product type: | Liquid leak detection module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Relay outputs: | 1 |
| Ports: | 1 |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 as Power Indicator 1 as Alarm Indicator |
| System | |
| Alarm | For both liquid leak detection and cable-break detection. |
| Buzzer | Yes. Can be muted by a push button. |
| Relay Output | Signal Relay, Form A x1, SPST 0.25 A @ 250 VAC 0.5 A @ 125 VAC 2 A @ 30 VDC |
| Liquid Leak Detection | |
| Channels | 1 |
| Liquid Type | Water, 2uS/cm |
| Sensor Type | Probe for point detection or Cable for line detection |
| Max. Cable Length | 500 meters Include Liquid Leak Detection Cable and Extended Cables. |
| Sensitivity Range | 26 KΩ ~ 580 KΩ (adjustable by rotary switch) |
| Cable-break Detection | Yes. For sense cable CA-LLD-DC100X-Lxxx only. |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | Software Configuration: 1200 ~ 115200 bps |
| Data Format | (N,8,1), (O,8,1), (E,8,1), (N,8,2) |
| Protocol | Modbus RTU or DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 10 ~ 30 VDC |
| Consumption | 1.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 80 x 70 x 28 (W x L x H) |
| Installation | Wall mount |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
