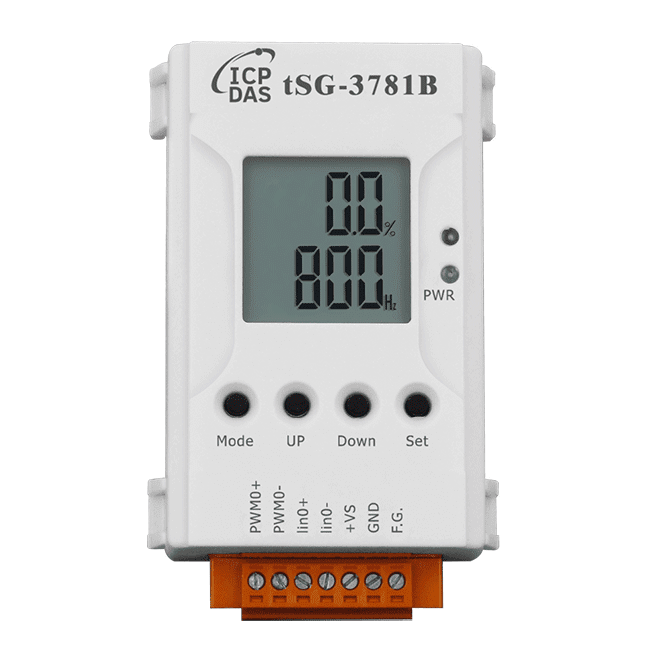

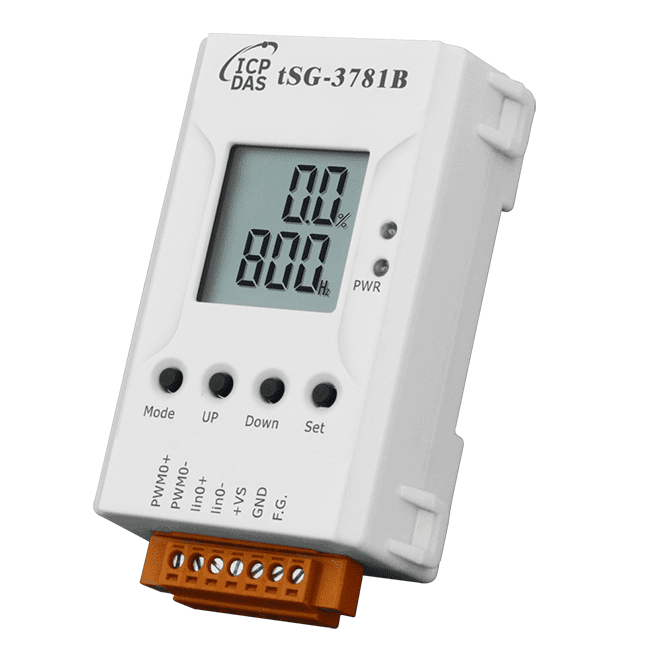

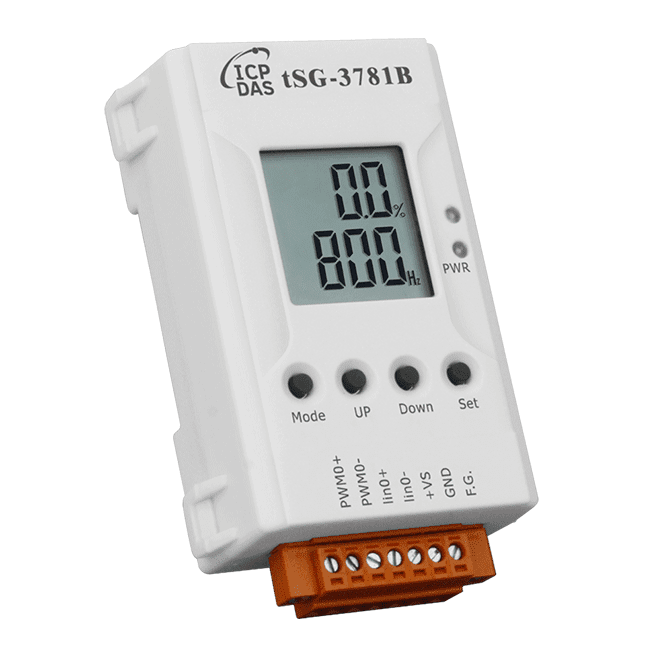

tSG-3781B 4~20 mA to PWM Signal Conditioner, 1-channel Current Input
Single-channel signal conditioner that converts a 4 ~ 20 mA current input into a PWM output with 0 to 100% duty cycle, with frequency set by push buttons and shown on an LCD.
- Converts a 1-channel 4 ~ 20 mA current input into a 1-channel PWM output
- Duty cycle of 1 to 100%, converted linearly from the 4 ~ 20 mA input
- PWM frequency adjustable from 600 Hz to 800 Hz via push buttons
- Monochrome graphics LCD shows the PWM duty cycle and frequency
- Analog input accuracy of ±0.1% of full range with 1 kHz bandwidth
- Power input +10 ~ +30 VDC with reverse polarity protection
799,74 kr. pr. stk.
| 1–9 stk. | 799,74 kr. | |
|---|---|---|
| 10–30 stk. | 777,32 kr. | −3 % |
| 31+ stk. | 762,37 kr. | −5 % |
Produktinformation "tSG-3781B 4~20 mA to PWM Signal Conditioner, 1-channel Current Input"
The tSG-3781B takes one 4 ~ 20 mA DC current signal and maps it linearly onto a PWM output, so a current loop can drive equipment that expects a pulse-width signal. The PWM duty cycle spans 1 to 100%, and the output runs in continuous mode from a source-type stage.
Output frequency is adjustable between 600 Hz and 800 Hz using the setting buttons on the bottom side of the module. A monochrome graphics LCD with a 26 x 26 mm viewing area shows the current duty cycle and frequency.
The module is rated for a +10 ~ +30 VDC supply with reverse polarity protection, operates from -25 ~ +75 °C, and mounts on DIN-rail or wall. It is a suitable choice for building heating and ventilation control and for servo-assisted diaphragm valve actuation.
Applications
- Heating system in buildings
- Ventilation system
- Controlling servo-assisted diaphragm valve
| Product type: | Signal conditioner |
|---|---|
| Interface: | 4 ~ 20 mA input / PWM output |
| Analog inputs: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail or wall |
Specifikationer
| Display | |
|---|---|
| Type | Monochrome Graphics LCD (26x26 mm Viewing Area) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 1 |
| Range | +4 ~ +20 mA |
| Accuracy | ±0.1% of full range |
| Bandwidth | 1 kHz |
| Input Impedance | 141 Ω |
| PWM | |
| Channels | 1 |
| Type | PWM |
| Sink/Source (NPN/PNP) | Source |
| Frequency | 600 ~ 800 Hz |
| Duty Cycle | 1 to 100% |
| Mode | Continuous |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.2 W (Typ.) 22.0 W Max. (Note2) |
| Mechanical | |
| Dimensions (mm) | 53 x 27 x 87 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
