uPAC-7186EX-MTCP-G Programmable Modbus TCP to RTU Gateway, Palm-sized

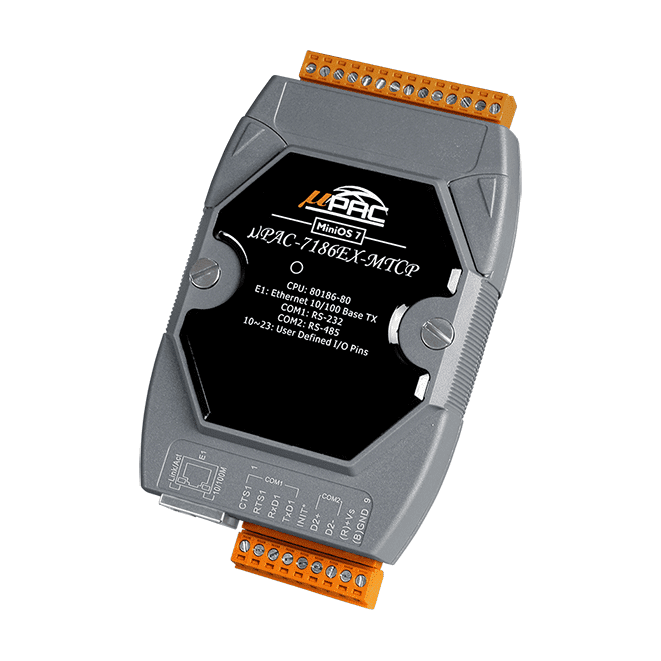

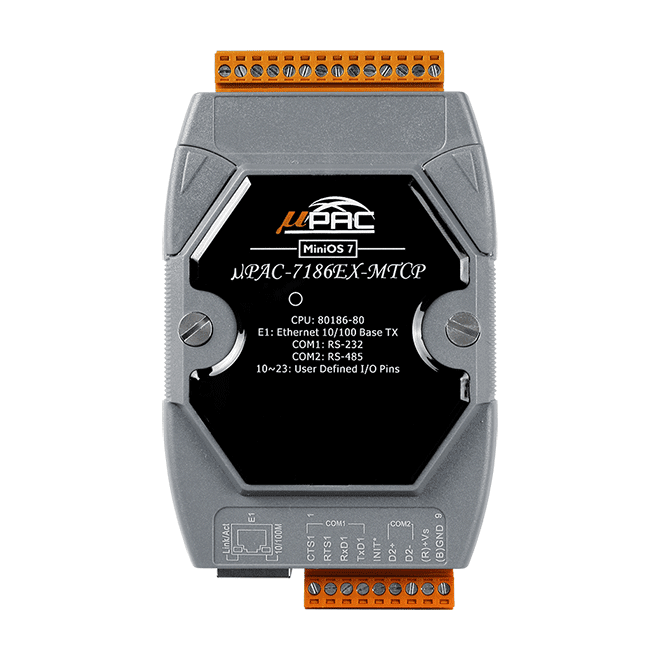

Palm-sized programmable gateway that links RS-232/485 serial devices to Ethernet and bridges Modbus TCP to Modbus RTU. Gray cover, DIN-rail mounted.
- Modbus TCP to RTU gateway for connecting serial devices to SCADA and HMI systems
- One 10/100 Base-TX Ethernet port plus one RS-232 and one RS-485 port, with serial rates up to 115200 bps
- Built-in MiniOS7 operating system with C language development tool kit and Modbus libraries
- 80186 CPU at 80 MHz with 512 KB flash, 512 KB SRAM and 16 KB EEPROM
- I/O expansion bus interface for one X-board
- Watchdog timer, real-time clock and 64-bit hardware serial number
2.100,25 kr. pr. stk.
| 1–9 stk. | 2.100,25 kr. | |
|---|---|---|
| 10–30 stk. | 2.040,46 kr. | −3 % |
| 31+ stk. | 1.995,61 kr. | −5 % |
Produktinformation "uPAC-7186EX-MTCP-G Programmable Modbus TCP to RTU Gateway, Palm-sized"
uPAC-7186EX-MTCP-G CR is a compact programmable device server for bringing serial equipment onto an Ethernet network. Its built-in Modbus TCP to RTU gateway function lets SCADA and HMI software poll RS-232 or RS-485 devices over the standard Modbus TCP protocol, without writing a custom driver for each one.
The unit runs the MiniOS7 real-time operating system from ICP DAS, and application code is developed in C using the supplied software development tool kit and Modbus libraries. The 80186 CPU at 80 MHz, 512 KB of flash and 512 KB of SRAM provide room for custom logic that sits between the serial and Ethernet sides.
For hardware expansion, the unit provides an I/O expansion bus that accepts one X-board. A watchdog timer, a real-time clock and a 64-bit hardware serial number support dependable unattended operation and device identification. The housing is designed for DIN-rail installation and operates from +10 to 30 VDC across -25 to +75 °C.
Applications
- Connecting RS-232 and RS-485 serial devices to Ethernet networks
- Modbus TCP to Modbus RTU protocol conversion for SCADA and HMI systems
- Integration of serial devices with SCADA packages such as Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFix
- Custom serial-to-Ethernet communication logic written in C
| Product type: | Programmable Gateway |
|---|---|
| Interface: | 10/100 Base-TX, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
