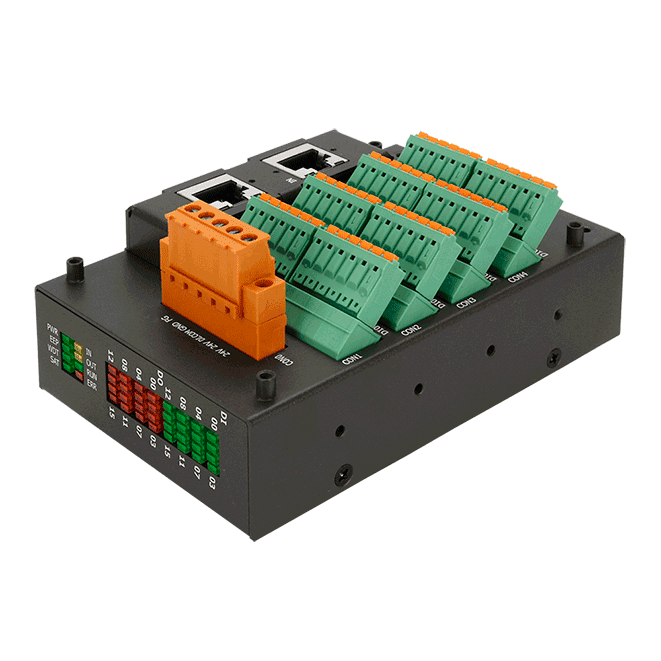

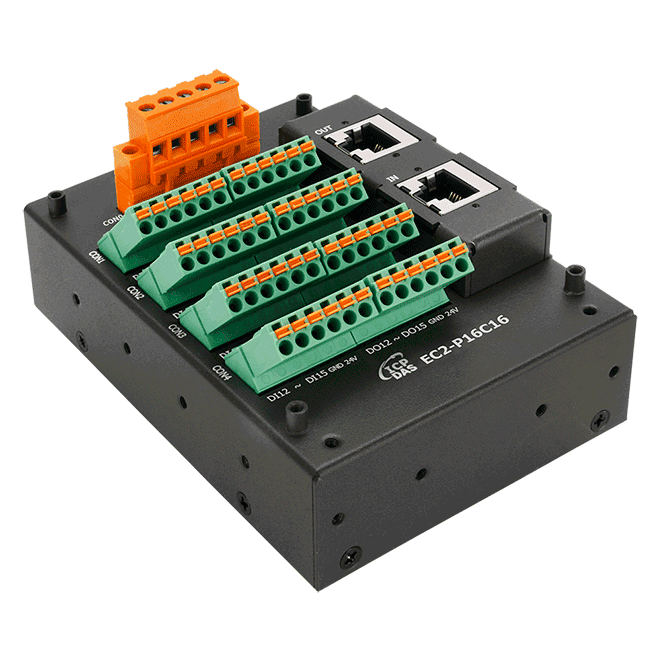

EC2-P16C16 EtherCAT Slave I/O Module, 16 DI and 16 DO Channels
EtherCAT slave I/O module with 16 isolated digital inputs and 16 digital outputs, daisy-chain wiring over two RJ-45 ports and up to 100 m between stations.
- EtherCAT slave with on-the-fly processing and node IDs up to 256
- 16 digital inputs and 16 digital outputs built in
- Two RJ-45 bus ports with daisy-chain support, up to 100 m between stations (100BASE-TX)
- Input isolation of 3750 VDC and output isolation of 3000 VDC
- Configurable power-on values and output retention after state machine change
- Low-pass filter feature and LED indicators for I/O status
1.756,44 kr. pr. stk.
| 1–9 stk. | 1.756,44 kr. | |
|---|---|---|
| 10–30 stk. | 1.704,12 kr. | −3 % |
| 31+ stk. | 1.666,75 kr. | −5 % |
Produktinformation "EC2-P16C16 EtherCAT Slave I/O Module, 16 DI and 16 DO Channels"

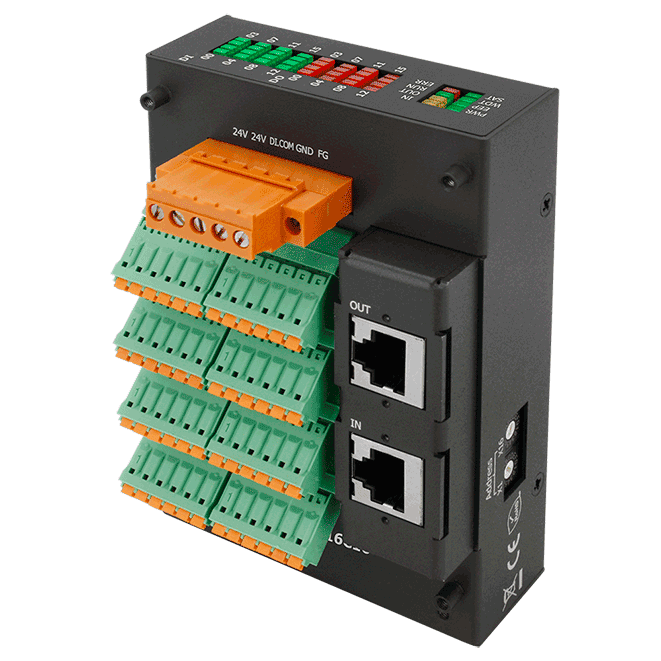

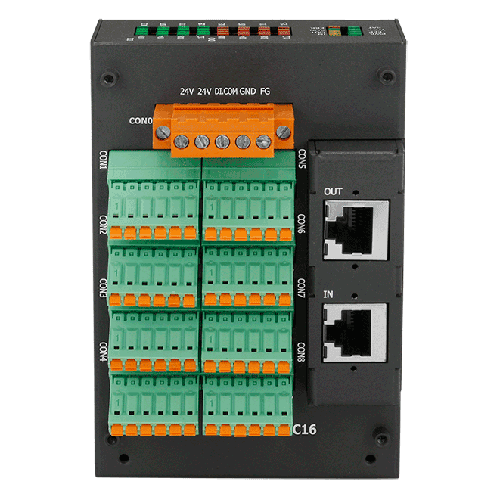

EC2-P16C16 is an EtherCAT slave module that adds 16 digital inputs and 16 digital outputs to an EtherCAT network. Its two RJ-45 bus ports allow stations to be linked in a daisy chain, which reduces the number of cables needed in a distributed system.
The inputs accept wet contacts in sink or source configuration as well as dry contacts, and the input channels are isolated at 3750 VDC. The outputs are open collector sink types with an internal flywheel diode, rated at 500 mA per channel and 40 VDC maximum load voltage. Channel states can be read from the process data or checked on the LED indicators.
The module has passed the EtherCAT conformance test tool, so compliant masters and configurators can work with it directly. Power-on output values are configurable, outputs can be kept after a state machine change, and the module is supplied from +24 VDC with a 3 W consumption.
Applications
- Distributed digital I/O for EtherCAT-based machine and automation networks
- Switch and sensor monitoring with wet or dry contacts
- Digital output control of actuators and indicators within EtherCAT systems
| Product type: | I/O module |
|---|---|
| Interface: | 2 x RJ-45 |
| Protocol: | EtherCAT |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Ports: | 2 x RJ45 |
| Isolation: | 3750 VDC (DI), 3000 VDC (DO) |
| Power input: | +24 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal, IP40 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Input | |
| Channels | 16 |
| Type | Wet (Sink & Source )/ Dry (Source) |
| ON Voltage Level | Wet Contact: +10 V ~ +24 V Dry Contact: Close to GND |
| OFF Voltage Level | Wet Contact :+4 V Max. Dry Contact: Open |
| Isolation | 3750 VDC |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector (Sink),with internal flywheel diode |
| Load Voltage | 40 VDC Max. |
| Load Current | 500mA/Channel(Sink) |
| Isolation | 3000 VDC |
| EtherCAT | |
| Ports | EtherCAT, 2 X RJ45 |
| Node ID | Up to 256 |
| Distance Between Stations | Max. 100m (100Base-Tx) |
| Data Transfer Medium | Ethernet/EtherCAT cable(min. CAT5), shielded |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +24 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Metal with IP40 |
| Dimensions (mm) | 83 x 122 x 65 (W x L x D) |

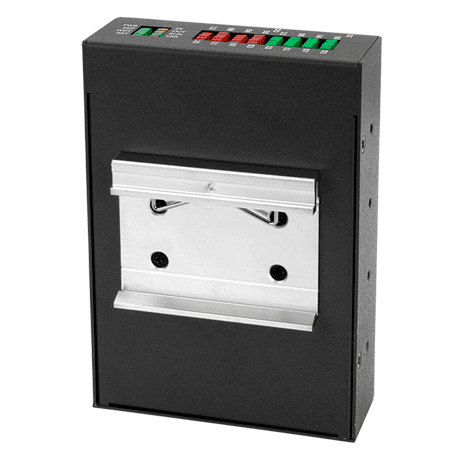

| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
