I-7188E2-MTCP Palm-sized Modbus TCP to RTU Gateway, RS-232/RS-485
Palm-sized programmable device server that links RS-232/RS-485 devices to Ethernet and works as a Modbus TCP to RTU gateway for SCADA and HMI systems.
- Modbus TCP to RTU gateway for connecting serial devices to Ethernet networks
- Built-in MiniOS7 and Modbus firmware with programmable C-language development kits
- 80188-40 CPU (40 MHz or compatible), 384 KB SRAM, 512 KB Flash and 2 KB EEPROM
- 1 x RJ-45 10BASE-T Ethernet port with NE2000 compatibility
- 1 x RS-232 and 1 x RS-485 serial ports, up to 115200 bps
- Programmable LED indicator and built-in watchdog timer
1.352,83 kr. pr. stk.
| 1–9 stk. | 1.352,83 kr. | |
|---|---|---|
| 10–30 stk. | 1.307,99 kr. | −3 % |
| 31+ stk. | 1.285,56 kr. | −5 % |
Produktinformation "I-7188E2-MTCP Palm-sized Modbus TCP to RTU Gateway, RS-232/RS-485"
The I-7188E2-MTCP is a palm-sized programmable gateway for bringing serial equipment onto an Ethernet network. It bridges an RS-232 port and an RS-485 port to a 10BASE-T connection, so engineers can expose legacy serial devices to Modbus TCP clients without redesigning the field hardware.
Built around an 80188-40 CPU with 384 KB SRAM and 512 KB Flash, the unit runs the built-in MiniOS7 and Modbus firmware. Application code can be written in C using the supplied software development tool kits, including XServer and Modbus libraries.

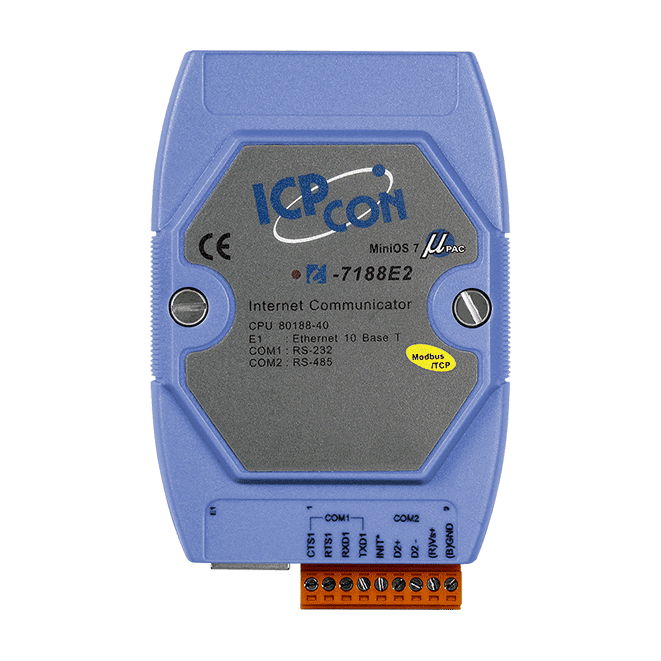

This ordering code is the blue cover version. It mounts on a DIN rail and operates from a +10 ~ 30 VDC supply across an operating temperature range of -25 ~ +75 °C.
Applications
- Integrating RS-232/RS-485 devices into Ethernet networks
- Modbus TCP to RTU gateway for SCADA and HMI communication
- Connecting serial equipment to SCADA packages such as Indusoft, ISaGARF, DasyLab, Trace Mode, Citect and iFix
| Product type: | Gateway |
|---|---|
| Interface: | 10BASE-T Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 384 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| Ethernet | |
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 112 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
