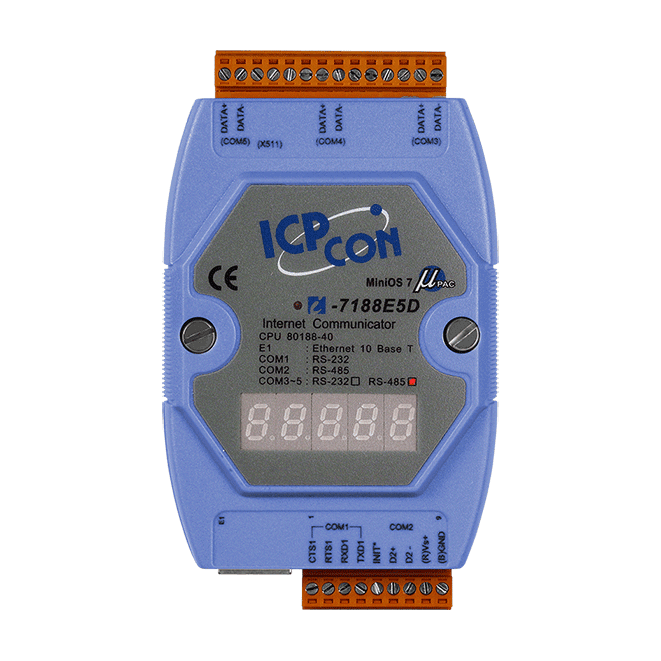

I-7188E5D-485 Programmable Ethernet to 5-Port Serial Converter, RS-232/485
Programmable Ethernet to serial device server with 1x RS-232 and 4x RS-485 ports and an LED display, for connecting serial devices to Ethernet networks.
- One RS-232 and four RS-485 serial ports, with serial data bridged to Ethernet
- Virtual COM (VxComm driver) or raw TCP data transmission
- Built-in MiniOS7 with Xserver programming structure for custom Ethernet applications
- Watchdog timer for use in harsh environments
- Removable on-board terminal block for industrial wiring
- Serial settings: up to 115200 bps, even/odd/no parity, 7 or 8 data bits, 1 stop bit
2.481,43 kr. pr. stk.
| 1–9 stk. | 2.481,43 kr. | |
|---|---|---|
| 10–30 stk. | 2.406,69 kr. | −3 % |
| 31+ stk. | 2.361,85 kr. | −5 % |
Produktinformation "I-7188E5D-485 Programmable Ethernet to 5-Port Serial Converter, RS-232/485"
The I-7188E5D-485 is a programmable device server that brings one RS-232 and four RS-485 serial ports onto an Ethernet network. It suits engineers who need to connect existing serial instruments, controllers or field devices to a network without redesigning the equipment behind them.
Serial data can be carried over a Virtual COM connection, using the VxComm driver on supported Windows systems, or over a raw TCP connection. The built-in MiniOS7 runs the Xserver programming structure, so custom Ethernet logic can be developed on the unit itself. A watchdog timer is included for unattended operation in harsh environments.
The removable on-board terminal block simplifies wiring in industrial installations. The unit is rated for -25 °C to +75 °C operation, accepts +10 VDC to +30 VDC non-regulated input with reverse polarity protection, and carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial to Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 5 serial (1x RS-232, 4x RS-485) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 4 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
