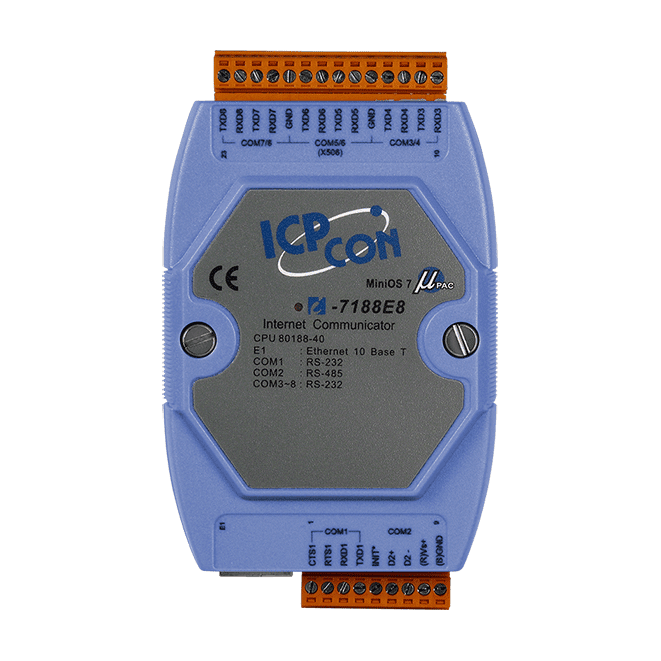

I-7188E8 Programmable Ethernet to 8-Port Serial Converter, RS-232/485
Programmable Serial-to-Ethernet device server with 7x RS-232 and 1x RS-485 ports, bringing legacy serial devices onto Ethernet via Virtual COM or raw TCP.
- Eight serial ports: 7x RS-232 and 1x RS-485 for Ethernet connectivity
- Data transfer via Virtual COM or raw TCP connection
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 from ICP DAS with user programming support
- Watchdog timer suitable for use in harsh environments
- Removable on-board terminal block for industrial wiring
2.459,01 kr. pr. stk.
| 1–9 stk. | 2.459,01 kr. | |
|---|---|---|
| 10–30 stk. | 2.384,27 kr. | −3 % |
| 31+ stk. | 2.331,95 kr. | −5 % |
Produktinformation "I-7188E8 Programmable Ethernet to 8-Port Serial Converter, RS-232/485"
The I-7188E8 CR is a programmable device server that links eight serial ports, seven RS-232 and one RS-485, to an Ethernet network. It suits engineers who need to connect existing serial equipment to a network without redesigning the device itself, because the unit is independent of the protocol that runs over the serial lines.
Serial data can be passed through as a Virtual COM port, so existing COM-based software on a Windows PC keeps working, or as a raw TCP connection for custom applications. A VxComm driver is provided for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016. The built-in MiniOS7 from ICP DAS supports user programming, and a watchdog timer is included for use in harsh environments.
The unit has a removable on-board terminal block for wiring and accepts a non-regulated +10 VDC to +30 VDC supply with reverse polarity protection. It is rated for an operating temperature of -25 °C to +75 °C and carries CE, UKCA, FCC, RoHS and WEEE markings.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 8 |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) 6 x RS-232 (TXD, RXD, GND) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
