PCI-M512U Universal PCI Board, 512 KB SRAM with 12-ch DI and 16-ch DO
Universal 3.3 V/5 V PCI card with 512 KB battery-backed SRAM, 12 TTL digital inputs and 16 TTL digital outputs, for keeping data through PC power loss.
- Universal PCI interface supporting both 3.3 V and 5 V bus signalling
- 512 KB onboard SRAM with unlimited write endurance
- Dual lithium battery backup, with one battery replaceable without losing data
- Four LED indicators for battery status: normal, low voltage or fault
- 12-channel 5 V/TTL digital input with static update trigger mode
- 16-channel 5 V/TTL digital output with static update operation
1.696,64 kr. pr. stk.
| 1–9 stk. | 1.696,64 kr. | |
|---|---|---|
| 10–30 stk. | 1.644,32 kr. | −3 % |
| 31+ stk. | 1.606,95 kr. | −5 % |
Produktinformation "PCI-M512U Universal PCI Board, 512 KB SRAM with 12-ch DI and 16-ch DO"

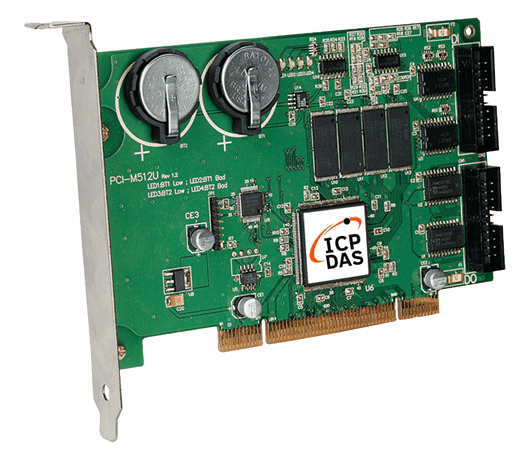

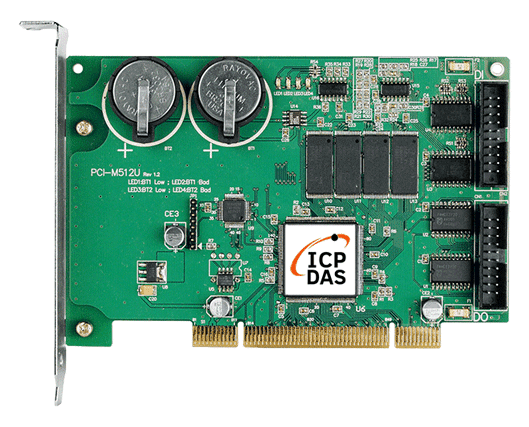

The PCI-M512U CR is a universal PCI card that combines 512 KB of SRAM with 12 digital inputs and 16 digital outputs, all at 5 V/TTL levels. It fits both 3.3 V and 5 V PCI slots, so it suits a range of host PCs used for data acquisition and digital control.
Two lithium batteries keep the SRAM contents when the PC loses power. According to the source, they can retain the data for 10 years. Because there are two batteries, one can be replaced while the other keeps the memory powered, so the stored data is not lost during the swap. Four on-board LEDs show the battery state, including normal, low voltage and fault conditions.
The digital inputs and outputs use static update operation with a typical response speed of 1.0 MHz. The card has a 20-pin box header x 2 connector and a 4-bit card ID. The operating range is 0 ~ +60°C, and it is CE, UKCA, RoHS and WEEE listed.
Applications
- Retaining process or event data across PC power loss
- Digital I/O on PCI-based industrial PCs and data acquisition systems
- Systems where non-volatile data storage improves reliability
| Product type: | PCI digital I/O board |
|---|---|
| Interface: | PCI (3.3 V/5 V) |
| Digital inputs: | 12 |
| Digital outputs: | 16 |
| Operating temperature: | 0 ~ +60°C |
Specifikationer
| Memory | |
|---|---|
| Type | SRAM |
| Size | 512 KB |
| Hardware | |
| Connector | 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 12 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 580 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 86 x 134 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
