PISO-730AU-5V PCI Digital I/O Board, 32-ch Isolated and 32-ch TTL I/O
Universal PCI digital I/O board with 16 isolated inputs, 16 isolated outputs and 32 TTL-level channels, supplied with one CA-4002 D-Sub connector.
- Universal PCI interface supporting 3.3 V and 5 V slots, 32-bit, 33 MHz
- 16 optically isolated digital inputs, wet contact, 5 to 12 V ON level
- 16 optically isolated digital outputs, open-emitter PNP type, 100 mA per channel at +30 V
- 16 non-isolated 5 V/TTL digital inputs and 16 non-isolated 5 V/TTL digital outputs
- 3750 Vrms photo-isolation protection between field and host
- Two interrupt sources and 4-bit card ID
1.734,01 kr. pr. stk.
| 1–9 stk. | 1.734,01 kr. | |
|---|---|---|
| 10–30 stk. | 1.681,70 kr. | −3 % |
| 31+ stk. | 1.644,32 kr. | −5 % |
Produktinformation "PISO-730AU-5V PCI Digital I/O Board, 32-ch Isolated and 32-ch TTL I/O"

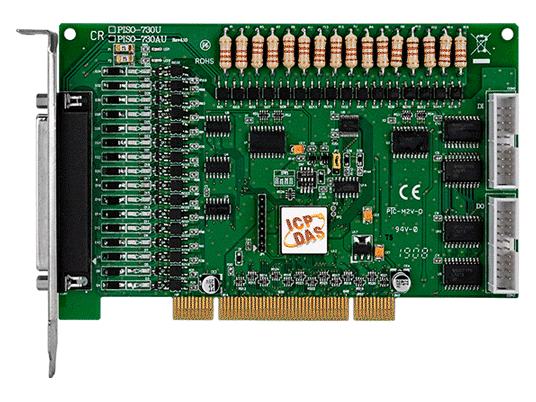

PISO-730AU-5V CR is a universal PCI card providing 32 optically isolated digital I/O channels (16 inputs and 16 outputs) alongside 32 TTL-level digital I/O channels (16 inputs and 16 outputs). It suits engineers who need galvanically separated signals next to direct logic-level connections on one host PC.
The isolated inputs and outputs use optocouplers rated at 3750 Vrms, so field signals can float relative to the host ground. This prevents ground loops and shields the computer from damaging voltage spikes. Each isolated output includes an integral suppression diode for inductive loads, which makes the channels practical for alarms, signal switching and driving external circuits that need a higher voltage level.
This ordering code includes one CA-4002 D-Sub connector. The card is intended for factory automation, product test and laboratory automation work.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | PCI digital I/O board |
|---|---|
| Interface: | PCI (3.3 V/5 V universal) |
| Digital inputs: | 16 isolated + 16 TTL |
| Digital outputs: | 16 isolated + 16 TTL |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 (Isolated) + 16 (Non-isolated ) |
| Type | Wet Contact Isolated: Photocoupler Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Wet: 5 ~ 12 V (Min. 3.5 V; Max. 16 V) TTL: Logic 1: 2.0 V Min. |
| OFF Voltage Level | Wet: 0 ~ 1 V TTL: Logic 0: 0.8 V Max. |
| Response Speed | 4 kHz (Typical) (Isolated) 1.0 MHz (Typical) (Non-isolate) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Isolated) |
| Digital Output | |
| Channels | 16 (Isolated) + 16 (Non-isolated ) |
| Type | Isolated: Open Emitter Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Source (PNP) |
| Operation Mode | Static Update |
| Load Voltage | Non-isolated: Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Load Current | 100 mA/+30 V for each channel @ 100% duty (Isolated) Sink: 2.4 mA @ 0.8 V (Non-isolated) Source: 0.8 mA @ 2.0 V (Non-isolated) |
| Response Speed | 4 kHz (Typical) (Isolated) 1.0 MHz (Typical) (Non-isolate) |
| Isolation | 3750 Vrms (Isolated) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 640 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105.06 x 163.68 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
