PISO-730U Universal PCI Digital I/O Card, 32-ch Isolated + 32-ch TTL
Universal 3.3 V/5 V PCI card providing 32 isolated and 32 TTL digital I/O channels, with 3750 Vrms photo-isolation and a CA-4002 D-Sub connector included with this ordering code.
- Universal PCI (3.3 V/5 V) interface, 32-bit, 33 MHz
- 16 isolated digital inputs and 16 isolated NPN sink digital outputs, 4 kHz typical response
- 16 TTL digital inputs and 16 TTL digital outputs, 1.0 MHz typical response
- 3750 Vrms photo-isolation and built-in DC/DC converter with 3000 VDC isolation
- Darlington (NPN) outputs with integrated suppression diode for inductive loads
- DO status readback at register level
1.734,01 kr. pr. stk.
| 1–9 stk. | 1.734,01 kr. | |
|---|---|---|
| 10–30 stk. | 1.681,70 kr. | −3 % |
| 31+ stk. | 1.644,32 kr. | −5 % |
Produktinformation "PISO-730U Universal PCI Digital I/O Card, 32-ch Isolated + 32-ch TTL"

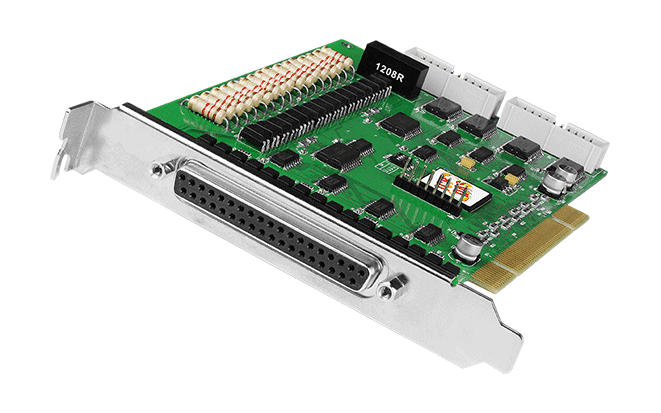

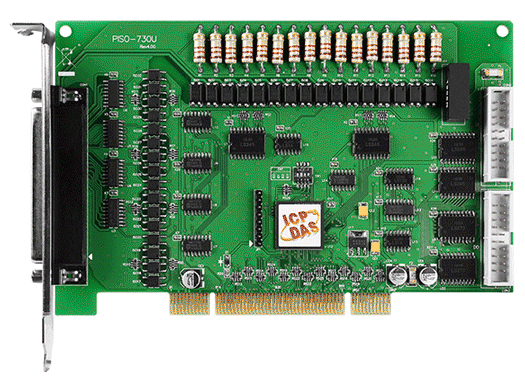

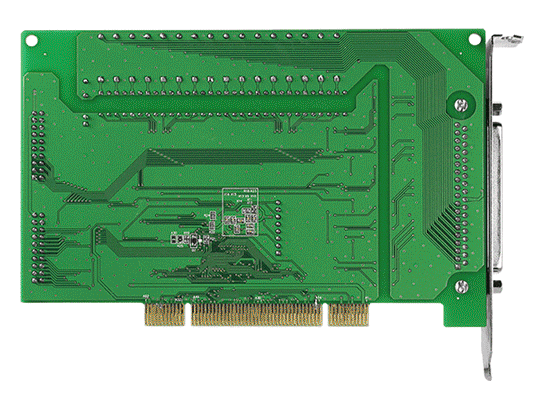

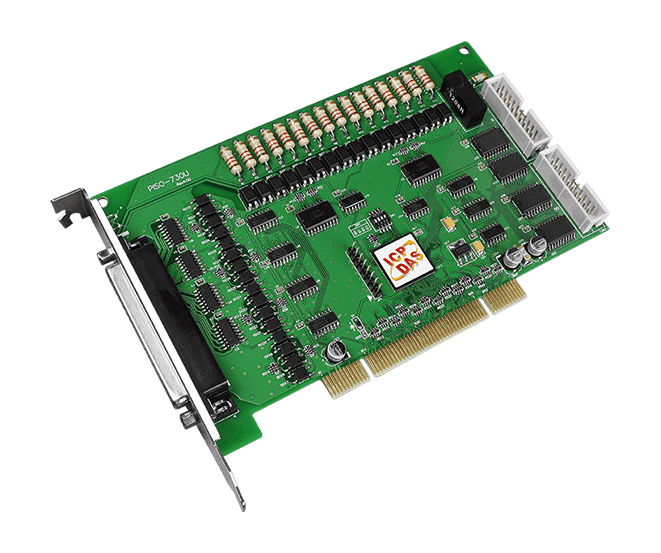

The PISO-730U CR is a universal PCI card for engineers who need both opto-isolated and TTL-level digital I/O in one slot. It has 16 isolated digital inputs, 16 isolated open-collector outputs (NPN sink), and 16 TTL digital inputs and 16 TTL digital outputs, on a 32-bit, 33 MHz PCI bus.
The isolated channels are rated at 3750 Vrms, which keeps field wiring electrically separate from the host PC and helps prevent ground loops. The isolated outputs include a Darlington (NPN) transistor and an integrated suppression diode for inductive loads, and the outputs can be read back at register level. A 4-bit SMD Card ID switch lets software identify each board when two or more cards are fitted in one computer.
This ordering code includes one CA-4002 D-Sub connector. Drivers and development support cover Linux, DOS and Windows, with a DLL, ActiveX control and sample programs for several languages including C#.NET, Visual Basic.NET and LabVIEW.
Applications
- Factory automation
- Product test
- Laboratory automation
| Product type: | Digital I/O board |
|---|---|
| Interface: | PCI (3.3 V/5 V universal) |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Isolation: | 3750 Vrms |
| Power input: | +5 V, 600 mA |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI slot |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 16 (Isolated) + 16 (Non-isolated) |
| Type | Wet Contact Isolated: Photocoupler Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Wet: 9 ~ 24 V (Min. 7 V; Max. 30 V) TTL: 2.0 V Min. |
| OFF Voltage Level | Wet: 0 ~ 1 V TTL: 0.8 V Max. |
| Response Speed | 4 kHz (Typical) (Isolated) 1.0 MHz (Typical) (Non-isolate) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Isolated) |
| Digital Output | |
| Channels | 16 (Isolated) + 16 (Non-isolated ) |
| Type | Isolated: Open Collector Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Voltage | Non-isolated: Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Load Current | +30 V for each channel @ 100% duty (Isolated) Sink: 2.4 mA @ 0.8 V (Non-isolated) Source: 0.8 mA @ 2.0 V (Non-isolated) |
| Response Speed | 4 kHz (Typical) (Isolated) 1.0 MHz (Typical) (Non-isolate) |
| Isolation | 3750 Vrms (Isolated) |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 600 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
