VP-6239-CE7-1500 15" InduSoft ViewPAC with Touch Panel and 3 I/O Slots
15-inch touch ViewPAC combining a 1 GHz Cortex-A8 controller running Windows CE 7.0, pre-installed InduSoft Web Studio Runtime and three slots for high-profile I/O modules.
- 32-bit Cortex-A8 CPU at 1 GHz running Windows CE .NET 7.0
- 15" TFT LCD, 1027 x 768 resolution, with touch panel
- IP65-rated front panel with six-key rubber keypad
- Three slots for high-profile I/O modules
- One RJ-45 Ethernet port (10/100/1000Base-TX), RS-232 and RS-485 serial ports
- InduSoft Web Studio Runtime pre-installed, 1500 tags licence
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "VP-6239-CE7-1500 15" InduSoft ViewPAC with Touch Panel and 3 I/O Slots"
VP-6239-CE7-1500 is a 15-inch panel controller that brings together a PAC, a graphic display and a keypad in one IP65-rated front panel. Its 32-bit Cortex-A8 CPU at 1 GHz runs Windows CE .NET 7.0, so engineers can run HMI and control logic on one unit rather than pairing a separate PLC and panel PC.

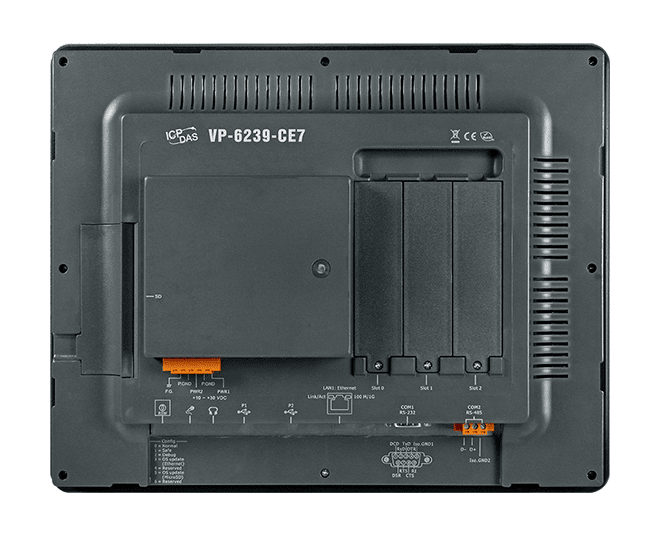

The -1500 suffix and the 1500-tag InduSoft licence distinguish this ordering code from the base VP-6239-CE7 in the same series. InduSoft Web Studio Runtime is pre-installed, and the unit provides three slots for high-profile I/O modules, one RJ-45 Ethernet port, an isolated RS-485 port and a non-isolated RS-232 port.

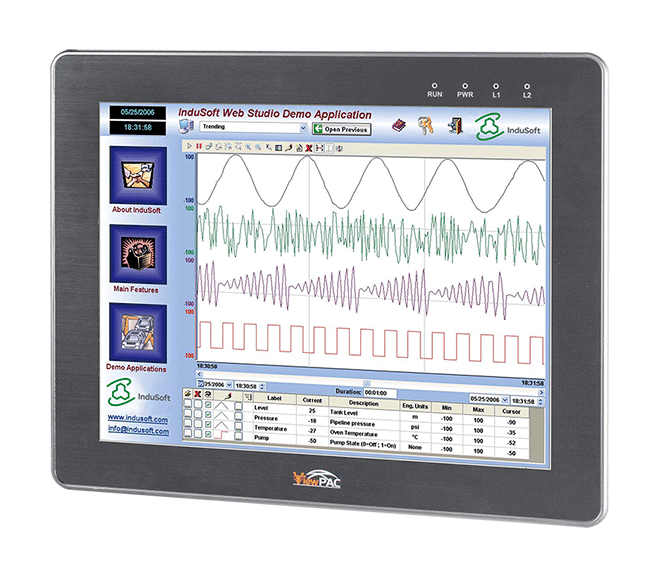

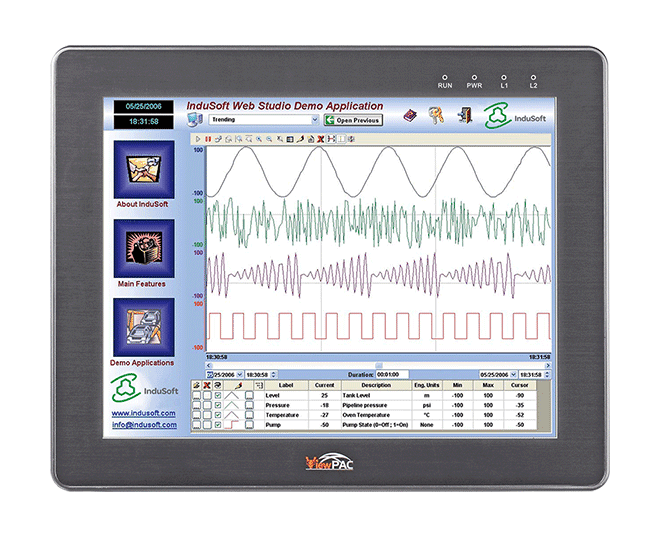

The 1027 x 768 touch display and six-key rubber keypad suit operator interfaces in cabinets or panels, with an operating range of -20 ~ +70 °C and a 10 ~ +30 VDC power input.
Applications
- Human machine interface (HMI) operator panels
- Supervisory control and data acquisition (SCADA) front ends
- Embedded instrumentation and control applications
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Ports: | 1 Ethernet, 2 serial, 3 USB |
| Isolation: | RS-485 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Housing: | IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE.NET 7.0 |
| Protocol | Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem. |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (32-bit and 1 GHz) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | SDRAM 128 MB |
| Storage | Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| Watchdog Timer | Yes |
| Display | |
| Size | 15" TFT (Resolution 1027 x 768) |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 x Power and Communication |
| I/O Expansion | |
| Slots | 3 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, Non-isolated; 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 3 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 0.65 W (0.3 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 381 x 305 x 139 (W x L x H) |
| Ingress Protection Rating | Front panel: IP65 |
| Environment | |
| Operating Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
