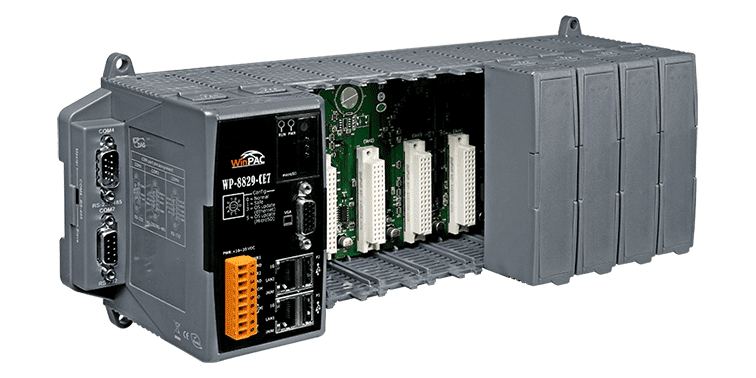

WP-8829-CE7 InduSoft WinPAC Controller, 8-Slot, Windows CE 7.0
8-slot WinPAC controller with pre-installed InduSoft Runtime on Windows CE 7.0, suited to HMI and SCADA work and expandable with I-8K and I-87K series I/O modules.
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM and 256 MB flash
- Windows CE 7.0 Professional with InduSoft Runtime pre-installed
- 8 I/O expansion slots for I-8K and I-87K series modules
- 2 x 10/100/1000Base-TX Ethernet ports
- Redundant power inputs with one 1 A @ 24 VDC alarm relay
- Hard real-time capability and 64-bit hardware serial number for software protection
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "WP-8829-CE7 InduSoft WinPAC Controller, 8-Slot, Windows CE 7.0"
WP-8829-CE7 CR is an 8-slot WinPAC controller that runs Windows CE 7.0 with the InduSoft Runtime pre-installed, giving engineers a single platform for human machine interface and supervisory control tasks. The ordering code corresponds to the 300-tag InduSoft variant.
The controller is built around a Cortex-A8 CPU clocked at 1.0 GHz, with 512 MB of DDR3 SDRAM and 256 MB of flash. Its eight I/O expansion slots accept I-8K (parallel-type) and I-87K (serial-type) series modules, so the system can be tailored to the signals in a given panel or machine.
For connectivity, the unit provides two 10/100/1000Base-TX Ethernet ports, two USB connectors and four serial ports, including an RS-485 port with 3000 VDC isolation. Redundant power inputs with an alarm relay add supply resilience, and the unit is rated for operation from -25 to +75 °C.
Applications
- Human machine interface (HMI) development
- Supervisory control and data acquisition (SCADA)
- Industrial automation panels and machine control with expandable I/O
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 3000 VDC (RS-485 port) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash 256: MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 8 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 355 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
