XW511i 4-Port Isolated RS-485 Expansion Board for uPAC-50xx and WP-51xx
Four isolated RS-485 serial ports on an expansion board for uPAC-50xx and WP-51xx controllers, with 128-byte FIFO buffers and communication speeds up to 115,200 bps.
- Four isolated RS-485 serial ports with 2500 Vrms isolation
- Communication speeds up to 115200 bps per the source specification
- 128-byte FIFO buffer on the serial ports
- Parity options None, Even, Odd, Mark and Space; 5 to 8 data bits; 1, 1.5 or 2 stop bits
- Onboard ESD protection devices to protect sensitive circuitry
- Operating temperature -25 ~ +75 °C; humidity 10 ~ 95% RH, non-condensing
1.360,30 kr. pr. stk.
| 1–9 stk. | 1.360,30 kr. | |
|---|---|---|
| 10–30 stk. | 1.322,93 kr. | −3 % |
| 31+ stk. | 1.293,04 kr. | −5 % |
Produktinformation "XW511i 4-Port Isolated RS-485 Expansion Board for uPAC-50xx and WP-51xx"

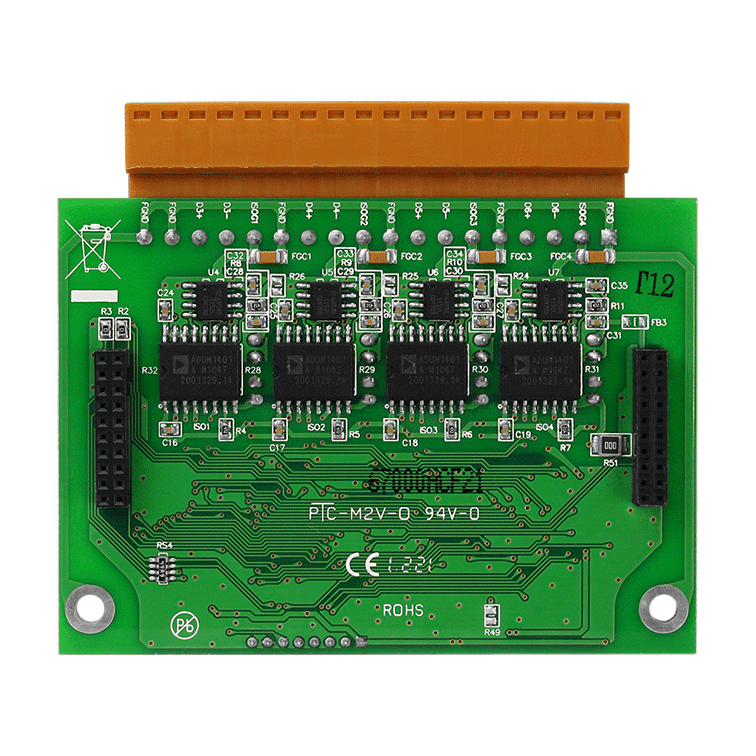

XW511i CR is an RS-485 port expansion board that adds four isolated serial ports to compatible uPAC-50xx and WP-51xx series controllers. Each port has a 128-byte FIFO buffer and supports communication speeds up to 115,200 bps, making it suited to projects that need several serial links on one controller.
Isolation of 2500 Vrms separates the serial ports from the controller, while onboard ESD protection devices divert electrostatic discharge away from sensitive circuitry. These features are intended for harsh industrial environments where transient charges could otherwise damage the board.
Ports support parity options of None, Even, Odd, Mark and Space, with 5 to 8 data bits and 1, 1.5 or 2 stop bits. The board is rated for an operating temperature of -25 ~ +75 °C and draws 0.8 W.
Applications
- Connecting bar code readers and intelligent sensors to a controller over RS-485
- Serial links to instrumentation equipment
- Communication with computers and other devices fitted with an RS-485 port
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-485 |
| Ports: | 4 |
| Isolation: | 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| COM Ports | |
|---|---|
| Ports | 4 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | 128 bytes |
| Isolation | Yes |
| Power | |
| Consumption | 0.8 W |
| Mechanical | |
| Dimensions (mm) | 66 mm x 82 mm x 14 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
